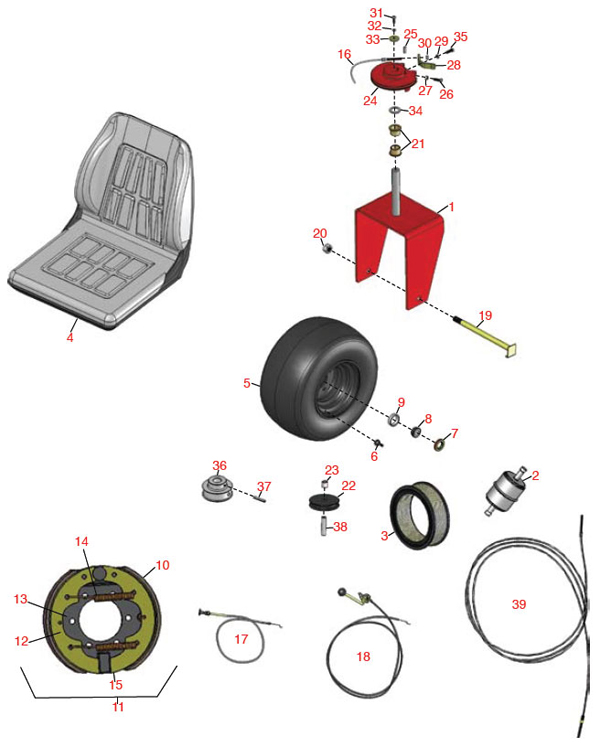

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R22-7480 22-7480 Fork - Steering ( 6 Shaft) 1
1 R23-4590 23-4590 Fork - Steering (8 Shaft) 1
2 R18-1520 18-1520 Filter - Fuel 1
3 R235116 235116 Filter - Air Kohler 14HP 1
4 R750100B R&R Only Seat - Universal-Black 1
4 R750100W R&R Only Seat - Universal-White 1
4 R750101B R&R Only Material - Cushion Back Black 1
4 R750101W R&R Only Material - Back Cush. White 1
4 R750102B R&R Only Material - Bottom Cush Black 1
4 R750102W R&R Only Material - Bottom Cush White 1
5 R353844 28-3680 Tire - 18 - 9.50 x 8 Smooth 2 1
5 R700141 Tube - 18 - 8.50/9.50 x 8 2
5 R150320 R&R Only Tire - w/Wheel Assy - White 2
5 R217-60 217-60 Wheel - With Valve Stem - White 2
6 R232-24 232-24 Stem - Valve w/ Cap 2
6 R232-27 232-27 Stem - Valve w/ Cap 2
7 R253-111 253-111 Seal 2
8 R254-78 254-78 Bearing 2
9 R254-79 254-79 Cup - Bearing 2
10 R11-1579 11-1579 Shoe - Brake 4
11 R150310 R&R Only Brake Assy 2
12 R3-6944 3-6944 Plate - Support 2
13 R215-75 215-75 Spring 8
14 R215-76 215-76 Spring 2
15 R215-74 215-74 Cam 2
16 R10-7220 10-7220 Cable - Steering Fits GM3 1
17 R6-9150 6-9150 Control - Choke 1
18 R23-4800 23-4800 Control - Throttle 1
19 R5-3934 5-3934 Bolt - Steering Caster Fork 1
20 R3296-50 3296-50 Locknut - 3/4-16 Full Hgt 1
21 R256-150 256-150 Bushing - Bronze Castor 2
22 R5-2653 5-2653 Pulley - Idler Steering Cable 4
23 R256-2 256-2 Bushing - Idler Pulley 4
24 R5-1894 5-1894 Use R51-2710
24 R51-2710 51-2710 Drum - Steering 1-1/8 Bore 1
25 R5-0946 5-0946 Key - 3/16 x 3/16 x 1-1/8 1
26 R3242-9 3242-9 Screw - Sq. Hd Set 5/16-18 1
27 R443106 3218-2 Nut - 5/16-18 Y/Zinc Plated 2
28 R3-8516 3-8516 Anchor - Steering Drum Cable 1
29 R3253-4 3253-4 Washer - Lock 5/16 Zinc 6
30 R444754 3296-4 Locknut - 5/16-24 Center 2
31 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 1
32 R3253-3 3253-3 Washer - Lock 1/4 1
33 R13-3710 13-1370 Washer - Steering Drum 1
34 R3-6558 3-6558 Washer - Thrust 1
35 R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1 1
36 R10-7210 10-7210 Pulley - Front Steering 1
37 R32121-34 32121-34 Pin - Roll 3/16 x 1-1/2 1
38 R10-7240 10-7240 Spacer - Steering Pulley 1
39 R95-5965 95-5965 Cable - Steering Fits 3050 1
