Deck  72"
 Engine

 Shibaura

 Horsepower  36
 Eletrical System  12 volt
 Fuel Capacity  49.2 L (13 gal)
 G. Speed (high)  Forward 24 kph (15 mph)
 Reverse 14.5 kph (9 mph)
 G. Speed (low)  Forward 9.6 kph (6 mph)
 Reverse 6.5 kph (4 mph)
 Blade Tip Speed

 18.964 fpm (72")

 Cutting Heights  50mm to 150mm, 6mm (2 inches  to  6 inches in .25in increments)

mataway dethatcher
Plant 1 Plant 2 Plant 3

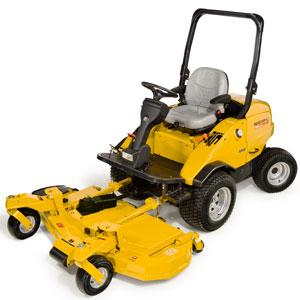

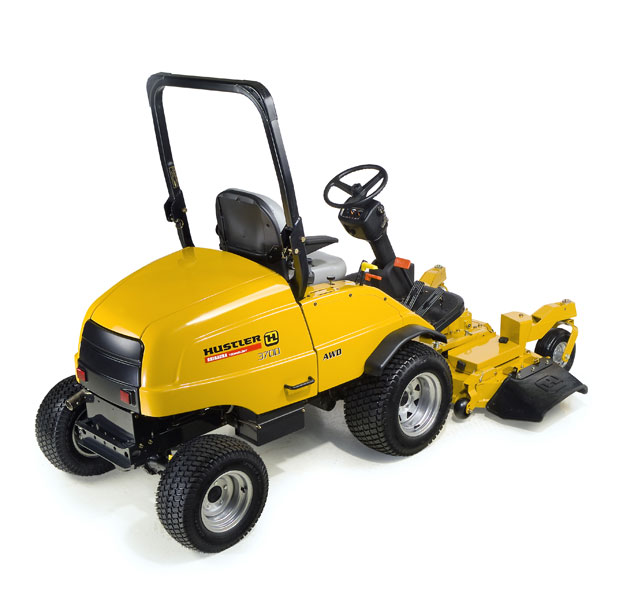

3700

  With four-season versatility and a powerful diesel engine, the Hustler 3700 is the ultimate workhorse. With an unmatched expertise in rotary mowers and exceptional customer care, Hustler will help you get any job done right. Whether you're maintaining golf courses or city property, get to know the same Hustler experience our customers have relied on for over half a century.


Dimensions

 Deck  Length  Width  Tire-to-Tire  Height  Weight
 72"  2160mm (85")  1370mm (54")  1370mm (54")  1750mm (77")  750Kg (1653lbs)


Features

- 36 hp Shibaura liquid-cooled diesel engine for increased engine life
- Front-mounted, welded XR-7 deck, with tool-free installation
- XR-7 side-discharge decks rotate up 90 degrees with PTO shaft remaining connected
   for easier maintenance
- Cruise control and tilt and telescoping steering wheel
- Foldable, two-post ROPS
- Low noise and low vibration
- Excellent weight balance to achieve maximum stability
- One piece full open hood designed for simple access to engine
- Full-time automatic AWD with AWD lock
- Hydraulic weight transfer for maximum traction
- One piece full open hood designed for simple access to engine
- Wet brakes in drive axle eliminate sticking, dirt and corrosion
- Foot pedal differential lock for extra traction



Warranty

 * Tractor - 2 Year/1500 hour limited Parts & Service

 * Engine - 3 Year/2000 hour limited Parts & Service

(*see your local hustler dealer for complete warranty details)



Attachments

Side Discharge Deck 72"

Rear Discharge Deck 72"

Mulch Kit
Nearly every Hustler deck has an optional Mulch Kit. No more
handling clippings. Recycle them back into the soil and
reclaim nutrients.

Beacon Kit

ROPS mounted Beacon Kit

ROPS mounted Light Kit

Tire Chain Kit

Counter Balance Weights
Each attachment has a recommended counter balance
weight requirement for the 3700 machine.
Weights are in 50lbs increments.

Auxilary Hydraulic Kit


Hear From Owners

"The 3700 is a great machine built around the concept of ease of operation. The Hustler is heavier built than the competition and has a better transmission. I like the easy to adjust PTO clutch feature and how rear wheel assist comes standard. Combined with the easy access of maintenance features, the 3700 has been a great addition to our Parks Department."
- A. Riebel, Wright County Parks Department


Part's Manual (IPL) Owner's Manual
Service Manual
