Deck  60" - 60"RD
 Engine

 Shibaura

 Horsepower  25
 Ignition  Compression
 Eletrical System  12 volt
 Fuel Capacity  54.5 L (14.4 gal)
 Ground Speed  Forward 19.3 kph (12 mph)
 Reverse 11 kph (7 mph)
 Blade Tip Speed

 18.260 fpm (60")

 Cutting Heights  2540mm to 140mm, 6mm
 (1 inch to 5.5 inches in .25in  increments)

mataway dethatcher
Plant 1 Plant 2 Plant 3 Plant 4 Plant 5 Plant 6

Hustler Z™ Diesel

  For operators who want the convenience of a diesel-fueled mower, the Hustler Z™ Diesel has the high-torque power to get the job done. The Z Diesel's heavy-duty 25 hp engine is positioned over the drive tires, distributing weight where it's most productive. A compact frame and low centre of gravity give this mower increased stability. Boasting a top speed of 19.3 kph and Hustler's proprietary SmoothTrak™ Steering, the Hustler Z Diesel works hard and works fast, making it a great addition to any commercial fleet.


Dimensions

 Deck  Length  Width  Tire-to-Tire  Height  Weight
 60"  2185mm (86")  1550mm (61")  1420mm (56")  1295mm (51")  726Kg (1600lbs)


Features

- 60"side-discharge XR-7TMdecks
- 60" rear-discharge decks
- Clean, compact design. Much more compact than competitive units
- Engine mounted sideways for serviceability and compactness
- Patented belt drive system provides up to 3X longer belt life
- Over 18,000 fpm blade tip speed -- superior quality of cut
- Wide stance, low center of gravity

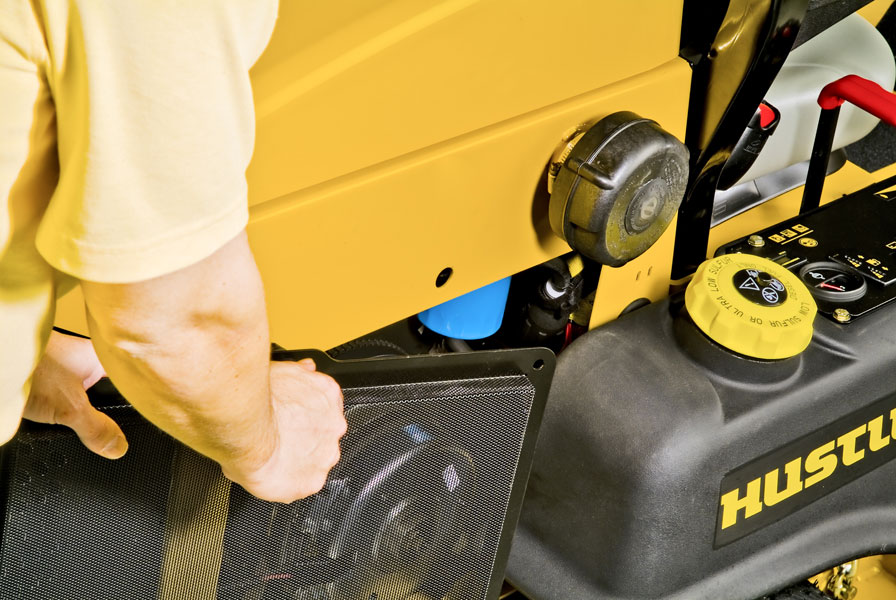

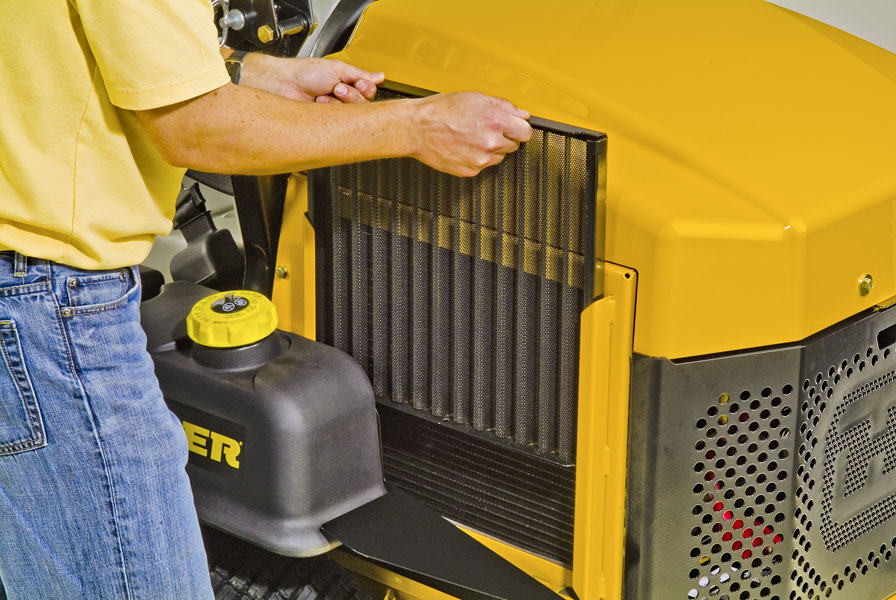

- Simplest maintenance in the industry--no daily lube points
- Durable rubberized discharge chute
- Toughest frame, front forks, and deck in the industry
- 19.3 kph top speed--get the job done fast



Warranty

    * 2 year, no hour limit or 4 year 500hrs
    * Lifetime warranty on tractor frame
    * Lifetime warranty on the leading edge of the deck
    * 3 years on blade-spindle bearings
    * 3 years on front-caster-fork bearings

(*see your local hustler dealer for complete warranty details)



Attachments

Mulch Kit
Nearly every Hustler deck has an optional Mulch Kit. No more handling clippings. Recycle them back into the soil and reclaim nutrients.

Hitch Kit
Bolt-on hitch with 7/8-inch hole. Will accept any standard ball.
Flex Forks

Shock-absorbing front-caster forks that improve operator comfort and provide a more even cut especially over uneven terrain and at higher speeds. Flex Forks fit nearly any Hustler z-rider.

Steering Extension Kit
Steering levers can be adjusted in several ways to make your mowing experience as comfortable as possible.

3-Bag Catcher
Easy-on, easy-off blower and hopper assemblies. The 3-bag catcher holds 422 litres.

Flasher Light Kit
ROPS mounted Flasher Light Kit.

Hydro Deck Lift
Raise and lower the deck with the flip of a switch. Fits Hustler Z, Super Z and ATZ.




Hear From Owners

"I've had a great experience with the Hustler Diesel Z. I cut about 15 acres and the cut quality is excellent. I tried out a competitive model and it was a good machine but the cut quality didn't come close to the Hustler."
- W. Bissonette, Williston, FL


Part's Manual (IPL) Owner's Manual
Shibaura Workshop Manual Service's Manual
