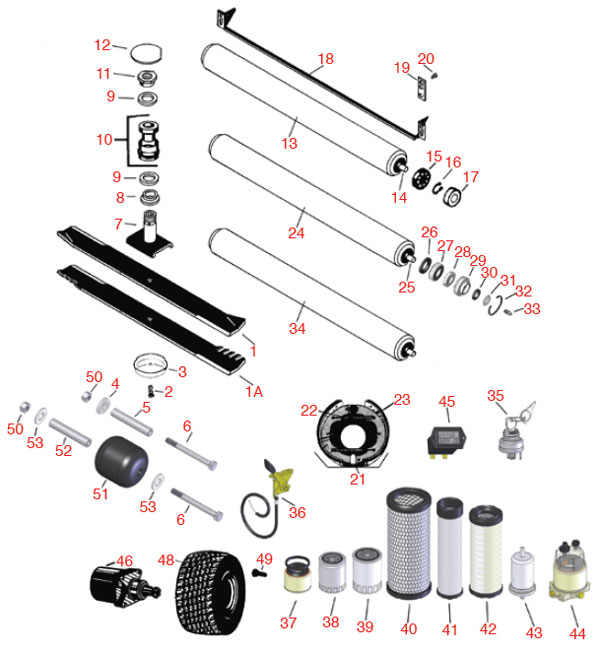

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
Rotary Blades Available
1 R100-5754-03 100-5754-03 Rotary Blade 3
1A R107-0235-03 107-0235-03 Rotary Blade - Mulcher 27 3
1A R108-1463 108-1463 Blade Kit - Gator Mulching SET/5
1A R108-1462 108-1462 Blade Kit - Gator Mulching SET/6
1A R108-1464 108-1464 Blade Kit - Gator Mulching SET/7
R107-1595 107-1595 Overhaul Kit - Roller

Overhaul Kits Available
R114-5430 114-5430 Overhaul Kit - Roller 1
R106-9606 106-9606 Overhaul Kit - Roller

Other Parts Available
2 R92-5816 92-5816 Bolt - Hex Hd 1/2-20 x 2-1/4 3
3 R72-9361 72-9361 Cup - Anti-Scalp 3
4 R93-4237 93-4237 Bearing 2
5 R100-5762 100-5762 Spacer - Bearing Roller 1
6 R327-15 327-15 Bolt - Axle 1
7 R100-5705 100-5705 Shaft - Spindle Assy 1
8 R92-9800 92-9800 Spacer - Spindle 1
8 R69-6950 69-6950 Use R92-9800 1
9 R253-154 253-154 Seal - Spindle 2
10 R100-5703 100-5703 Bearing - w/Spacer Assy 1
10 R100-5704 100-5704 Spacer - Set Fits R100-5703 1
11 R100-5709 100-5709 Nut - Special Spindle 1
12 R94-2703 94-2703 Plug - Plastic Spindle Housing 1
13 R105-6771-03 105-6771-03 Roller - 3 Tube Assy Only 1
13 R105-6772 105-6772 Roller - 3 Assy 1
13 R105-1227 105-1227 Use R105-6772 1
14 R104-9480 104-9480 Shaft - 1
15 R251-347 251-347 Bearing - Ball 2
16 R32120-15 32120-15 Ring - Snap 2
17 R150614 99-3842 Seal 2
18 R104-9492-03 104-9492-03 Scraper - Rear Roller 1
19 R105-1230-03 105-1230-03 Plate - Scraper 2
20 R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4 4
21 R104-7705 104-7705 Use R71-1500 2
21 R71-1500 104-7705 Brake Assy 2
22 R70-9880 70-9880 Spring - Brake Shoe 4
22 R70-9880S R&R Only Spring - Brake Shoe - Stainless 4
23 R70-9840 70-9840 Shoe - Brake 4
24 R107-1996 107-1996 Roller Assy - Regreasable 1
25 R107-1984 107-1984 Shaft - Roller 1
26 R93-3007 93-3007 Seal 2
27 R343667 109966 Bearing - Ball 2
46 R75-9990 75-9990 Motor - Hydraulic Wheel 1
47 R76-0800 76-0800 Seal Kit - Hyd Motor 3
48 R700169 104-0451 Use RCT575315 2
48 RCT575315 104-0451 Tire - 20x12.00-10 Nhs (4 Ply) Carlisle Turf Trac R/S 2
48 R95-3465 95-3465 Use 29x14.00-15 (6 Ply) Tire 2
48 RCT5293E6 95-3465 Tire - 29x14.00-15 Nhs (6 Ply) Carlisle Ultra Trac 2
48 R700167 95-8656 Use 20x10.00-10 (4 Ply) Tire 2
48 RCT50D362 95-8656 Tire - 20x10.00-10 Nhs (4 Ply) Carlisle Turf Trac R/S 2
49 R232-27 232-27 Stem - Valve w/ Cap 4
50 R3296-53 3596-53 Locknut - 5/8-11 ESNA Yellow 1
51 R150495 R&R Only Roller Assy - 5 UHMW Front 1
52 R150496 R&R Only Wear Sleeve - Fits R150495 Only 1
53 R150497 R&R Only Washer - Fits R150495 Only 2
R112-5290 112-5290 Bearing - Stainless 2
R112-7494 112-7494 Seal 4
R114-5411 114-5411 Locknut - Roller 2
R237-161 237-161 O-Ring 1
R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 2
R104-1092 104-1092 Use R150495 2
R105-9810-03 105-9810-03 Use R100-5754-03 1
R114-3717 114-3717 Seal 2
R115-3418 115-3418 Use R150495 2
R302-5 302-5 Fitting - Grease 1
R302-62 302-62 Fitting - Grease - Extended Shank 2
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16 6
R32128-49 32128-49 Nut - Hhf 6
R3234-11 3234-11 Screw - Hex Washer Hd 4
R3234-24 3234-24 Bolt - Hex Serrated Washer Hd 3/8-16 x 1-1/4 3
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 2
R325-5 325-5 Bolt - Hex Hd 1/2-13 x 1-1/4 6
R3274-31 46-8560 Screw - Button Hd Soc Cs 1/4-20x5/8 5
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 2
R80-6990 80-6990 Washer - Hardened 2
