Search Parts

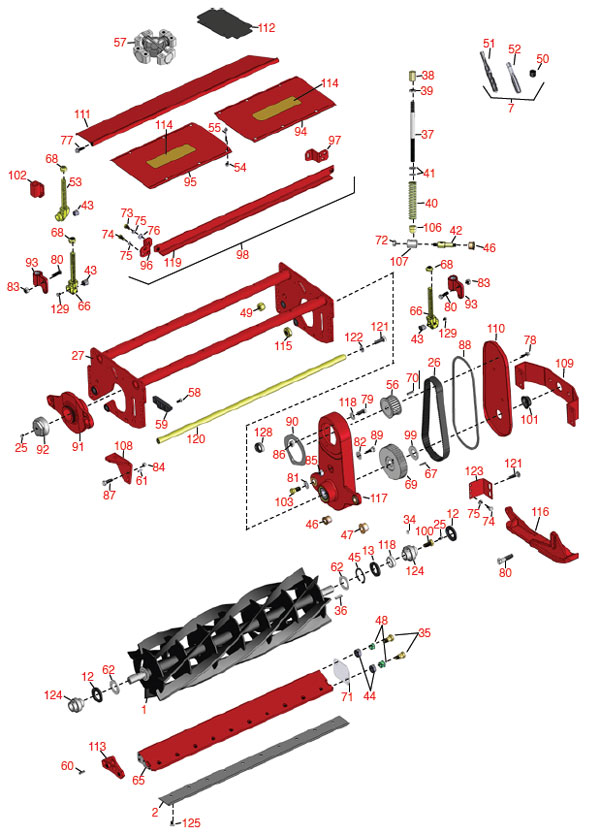

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

R&R Reels Available, Lifetime Guaranteed
1 R13-8229 13-8229 Reel - 5 Blade 1
1 R13-8219 13-8219 Reel - 7 Blade 1
1 R14-0919 14-0919 Reel - 11 Blade 1
1 R12-4459 12-4459 Use R13-8229
1 R12-4469 12-4469 Use R13-8219
1 R14-7419 14-7419 Use R13-8229

R&R Bedknives Available, Lifetime Guaranteed
2 R72-0480 72-0480 Bedknife - High Cut
Tech Note: Use with 5 Blade Reel
 1
2 R59-5890 59-5890 Bedknife
Tech Note: Use with 7 Blade Reel
 1
2 R76-3620 76-3620 Bedknife
Tech Note: Use with 11 Blade Reel
 1

R&R Overhaul Kits & Service Tools
7 R150530 Repair Kit - Bed Bar 1
8 R150540 Overhaul Kit - Cutting Unit
8 R13-3679 13-3679 Overhaul Kit - Cutting Unit
11 R95-4389 95-4389 Overhaul Kit - Cutting Unit
R51-0880 R&R Only Tool - Bedknife Screw

Other Parts Available
12 R253-145 253-145 Seal - Oil Reel Assy
13 R253-145 253-145 Seal - Oil Reel Assy 1
13 R92-9250 92-9250 Seal - Reel 1
16 R62-6040 62-6040 Shaft - 35 Roller 1
16 R84-6070 84-6070 Shaft - 36 Roller 1
17 R253-122 253-122 Seal - Inner Roller Assy. 2
18 R254-79 254-79 Cup - Bearing 2
19 R254-78 254-78 Bearing 2
20 R237-54 237-54 O-Ring - Small 2
21 R59-5690 59-5690 Sleeve - Wear 2
22 R253-117 253-117 Seal - Outer Triple Lip 2
23 R150504 66-5620 Washer 2
24 R3296-15 3296-15 Locknut - 3/4-16 Nylon Jam 2
25 R302-5 302-5 Fitting - Grease
26 R150520 47-7160 Belt - Cutting Unit
27 R14-0829 14-0829 Frame - Cutting Unit 1
34 R48-8880 48-8880 Pin - Reel Bearing 2
35 R66-5570 66-5570 Bolt - Shoulder Bed Bar 4
35 R84-6090 84-6090 Use R66-5570
36 R75-7570 75-7570 Key - Reel 5/32 x 1/4 x.900 1
37 R72-0390 72-0390 Rod - Bedknife Adjusting 2
38 R72-0380 72-0380 Hex - Bedknife Adjuster 2
39 R443818 3218-5 Nut - 1/2-13 Hex Jam Zinc 2
40 R72-0400 72-0400 Spring - Bed Bar Adj 2
41 R257-5 257-5 Washer - Thrust 4
42 R72-0440 72-0440 Pin - Pivot - Bedknife Adj. 2
43 R59-5780 59-5780 Bushing - Roller Bracket 4
44 R62-6110 62-6110 Bushing - Rubber For Bed Bar 4
45 R32151-71 32151-71 Ring - Snap Reel Brg 1
46 R72-0430 72-0430 Bushing - Flanged Adj Pin 2
46 R92-9252 92-9252 Bushing - Flanged 2
47 R256-252 256-252 Bushing - Flanged 2
48 R256-292 256-292 Bushing - Nyliner Bed Bar 4
49 R242-50 242-50 Nut - 1/2-20 Wheel 2
50 R150531 Insert - 1/2-20
51 R150532 Drill - 21/32 1
52 R150533 Tap - 3/4-10 1
53 R62-6010 62-6010 Bracket - Roller w/Bush 2
54 R301504 3296-42 Locknut - ESNA 1/4-20 10
55 R321-11 321-11 Use R3234-34
55 R3234-34 3234-34 Bolt - Hex Washer 1/4 x 2 10
56 R47-7150 47-7150 Pulley - Belt Drive 1
57 R59-5910 59-5910 U-Joint 1
58 R301503 32108-101 Screw - 1/4-20 x 5/8 Mach 4
59 R62-6070 62-6070 Use R77-4810
59 R77-4810 77-4810 Block - Deflecter 2
60 R32121-11 32121-11 Pin - Roll 1/4 x 3/4 4
61 R32121-2 32121-2 Pin - Roll 3/16 x 5/8 2
62 R38-7330 38-7330 Shield - Grass 2
65 R59-5470 59-5470 Backing Bar - Bed Knife 1
65 R77-4340 77-4340 Backing Bar - 11 Blade Reel 1
66 R84-6100 84-6100 Bracket - Roller w/Rubber Bushing 4
66 R59-5700 59-5700 Use R84-6100
66 R84-6100S R&R Only Bracket - Roller w/o Bush 562 ID 4
67 R32121-50 32121-50 Pin - Roll Spiral Lock 1/8 1147 1
68 R59-5820 595820 Nut - Cone Roller Adj Bkt 8
69 R47-7140 47-7140 Pulley - Driven Timing Belt 1
70 R47-2380 47-2380 Key - Drive Pulley 1
71 R48-9240 76-3580 Spacer - Shim Bed Bar
71 R76-3580 76-3580 Use R48-9240
72 R32128-15 32128-15 Locknut - 1/2-20 Flanged 4
73 R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4 2
74 R400184 322-2 Screw - 5/16-18 x 3/4 Hex 6
75 R3253-4 3253-4 Washer - Lock 5/16 Zinc 8
76 R453009 3256-2 Washer - Flat 5/16 SAE 8
77 R3234-12 3234-12 Bolt - Hex Serrated Washer Hd 2
78 R3234-14 3234-14 Bolt - Hex Serrated Washer Hd 2
79 R324-6 324-6 Bolt - Hex Hd 7/16-14 x 1-1/2 2
80 R325-7 325-7 Bolt - Hex Hd Gr 5 4
81 R3256-69 3256-69 Washer - Flat 1
82 R3290-440 3290-440 Washer - Belleville 2
83 R3296-25 3296-25 Locknut - 1/2-13 Heavy ESNA 4
84 R3296-26 3296-26 Locknut - 3/8-16 ESNA Heavy 4
85 R3296-28 3296-28 Nut - 1/2-20 ESNA Jam 2
86 R3296-48 3296-48 Locknut - 7/16-14 ESNA 2
87 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 4
88 R47-7170 47-7170 Gasket - Cover 1
89 R48-9020 48-9020 Bolt - Shoulder 1/2-20 2
90 R48-9050 48-9050 Plate - Drive 1
91 R59-5550 59-5550 Housing - Bearing 1
92 R59-5560 59-5560 Cap - Dust 1
93 R59-5770 59-5770 Bracket - Rear Roller 2
94 R59-5830 59-5830 Cover - Inner Grass Shield 1
95 R59-5840 59-5840 Cover - Outer Grass Shield 1
96 R59-6070 59-6070 Bracket - Scraper RH 1
97 R59-6080 59-6080 Bracket - Scraper LH 1
98 R59-6090 59-6090 Scraper Kit - Rear Roller 1
99 R59-6150 59-6150 Washer - Reel Pulley 1
100 R59-6190 59-6190 Bolt - Reel Special 1
101 R59-7490 59-7490 Caplug 1
103 R62-6080 62-6080 Bolt - Shoulder 1
106 R72-0410 72-0410 Stand - Off 2
107 R72-0420 72-0420 Tube - Clamp 2
108 R72-0450 72-0450 Bracket - RH Bedknife Adj 1
108 R72-0460 72-0460 Bracket - LH Bedknife Adj 1
109 R72-0470 72-0470 Guard 2
110 R75-7580 75-7580 Cover - Drive RH 1
110 R75-7590 75-7590 Cover - Drive LH 1
111 R51-1600 51-1600 Use R75-7680
111 R52-9660 52-9660 Use R75-7680
111 R75-7680 75-7680 Deflector - 1
112 R75-8100 75-8100 Cover - Center 1
113 R76-3600 76-3600 Plate - LH End - Bed Bar 1
113 R76-3610 76-3610 Plate - RH End Bed Bar 1
114 R76-8760 76-8760 Decal - 2
115 R82-9390 82-9390 Nut - Special Drive Housing 2
116 R59-5980 59-5980 Use R84-0820
116 R59-5990 59-5990 Use R84-0810
116 R84-0810 84-0810 Skid - LH 1
116 R84-0820 84-0820 Skid - RH 1
117 R92-6098 92-6098 Housing - RH 1
117 R92-6099 92-6099 Housing - Drive LH 1
118 R92-9251 92-9251 Sleeve - Wear Reel Bearing 1
118 R187-0 3256-25 Washer - Flat 7/16 SAE 1
119 R150521 R&R Only Bar - Scraper 1
120 R93-7769 93-7769 Rod - Support 1
121 R325-4 325-4 Bolt - Hex Hd 1/2-13 x 1 2
122 R3253-7 3253-7 Washer - Lock 1/2 /R446154 2
123 R59-6000 59-6000 Bracket - Skid RH 1
123 R59-6010 59-6010 Bracket - Skid LH 1
124 R59-6140 59-6140 Bearing - Reel 2
125 R150475 3-6462 Screw - Stainless
125 R150476 57-4910 Screw - Regular
128 R66-5710 66-5710 Seal - Hyd Motor Shaft 1
129 R150508 R&R Only Screw - Set 3/8-16 x 1/2 4
