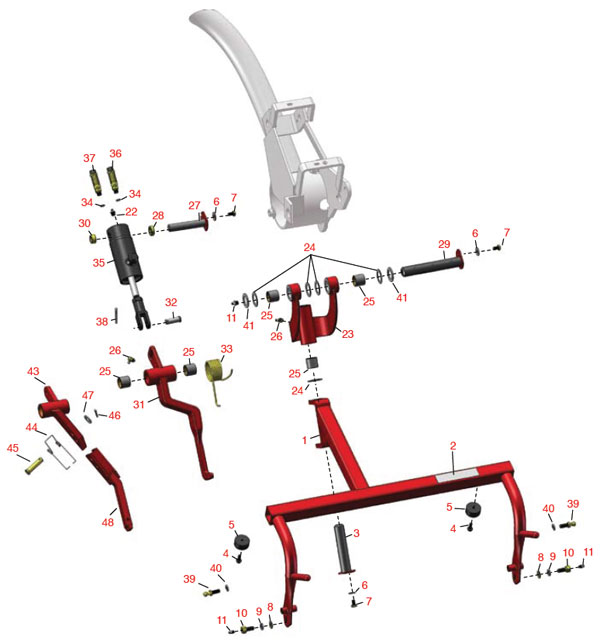

Item # R&R
Part No.
OEM
Part No.
Description Qty
Req
1 R112-0283 112-0283 Frame - Pull LH 1
1 R108-8632 108-8632 Use R112-0283
1 R86-9810 86-9810 Frame - Pull LH 1
1 R92-9176 92-9176 Use R86-9810
1 R104-2054 104-2054 Use R86-9810
2 R93-8064 93-8064 Decal - Warning 1
2 R93-6688 93-6688 Decal - Warning 1
3 R10-6090 10-6090 Pin - Pivot 4 7/8 Long 1
4 R49-2040 32104-95 Bolt - Hex Washer 1/4-20 x 3/4 2
5 R94-4548 94-4548 Bumper - Rubber Pull Frame 2
6 R3256-23 3256-23 Use R453009 3
6 R453009 3256-23 Washer - Flat 5/16 SAE 3
7 R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 3
22 R700415 700415 Zerk - Grease 1/8 PTF 45 Deg 1
23 R10-7820 10-7820 Pivot Hinge Assy 1
24 R10-8110 10-8110 Washer - Pivot Pin 6
25 R3-0348 3-0348 Bushing 6
26 R302-60 302-60 Zerk - Grease 90 Deg. 2
27 R10-6060 10-6060 Pin - Pivot 3 7/8 Long 1
28 R105-3828 105-3828 Spacer - Lift Cyl 1
29 R10-6110 10-6110 Pin - Hinge 6 1/4 Long 1
30 R74-3730 74-3730 Spacer 1
31 R107-2598 107-2598 Lift Arm Assy - LH - Red 1
32 R283-8 283-8 Clevis Pin - 1/2 x 1 27/64 1
33 R110-3952 110-3952 Spring - Torsion - LH 1
33 R106-9079 106-9079 Use R110-3952
34 R237-22 237-78 O-Ring 1
35 R106-9066 106-9066 Cylinder - Hydraulic LH/RH 1
35 R107-2564 107-2564 Seal Kit 1
36 R83-1690 83-1690 Hose Assy - Front LH Cylinder 1
37 R63-3850 63-3850 Hose - Cyl LH Drop Fits 1
38 R3272-11 3272-11 Pin - Cotter 1
39 R94-2958 94-2958 Stud - Alloy Ball Joint 2
39 R2411-7 2411-7 Use R94-2958
40 R3254-6 3254-6 Washer - Lock 3/8 2
41 R5-1226 5-1226 Spacer - Lift Cyl 2
43 R62-2460 62-2460 Arm - Lift LH 1
44 R57-7650 57-7650 Spring - Torsion Lift Arm 1
45 R63-8750 63-8750 Clevis Pin 1
46 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 1
47 R3256-26 3256-26 Use R453017 1
47 R453017 3256-26 1
48 R94-5586-01 94-5586-01 Bar - Lift LH 1
