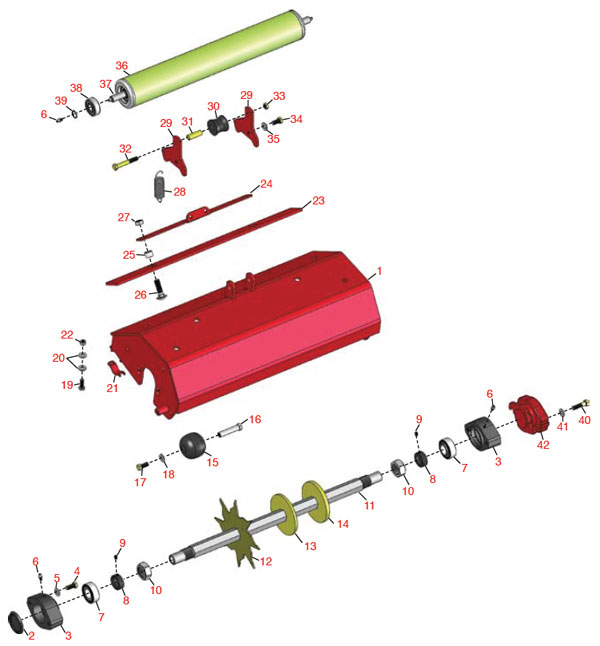

Item # R&R
Part No.
OEM
Part No.
Description Qty
Req
1 R100-6443-01 100-6443-01 Frame - Spiker 1
2 R150485 2410-30 Cap - Protective Bearing Housing 1
3 R95-7148 95-7148 Housing - Bearing Reel 2
4 R33115-025 33115-025 Bolt - Hex Hd M10-1.5 x 25 4
5 R48-9590 48-9590 Washer - Lock 10mm 4
6 R302-5 302-5 Fitting - Grease 2
7 R71-1360 94-3405 Bearing - Reel 2
8 R251-77 251-77 Collar - Bearing 2
9 R3245-35 3245-35 Screw - Set 1/4-28 x 1/4 2
10 R3220-18 67-5840 Nut - Jam V-Cut Shaft 2
11 R99-1611 99-1611 Shaft - Spiker 1
12 R99-1612 99-1612 Spiker Blade - 10 Ga .134 w/Hex Hol 10
13 R99-1613 99-1613 Spacer - Blade 73
14 R99-1635 99-1635 Spacer - Blade .375 2
15 R99-4210 99-4210 Roller - Basket - Anti Scalp 2
16 R99-4209 99-4209 Shaft - Special Roller 2
17 R400260 323-5 Bolt - Hex Hd 3/8-16 x 7/8 2
18 R3256-45 3256-45 Washer - Flat .733 x .381 x .058 YZ 2
19 R57-6380 33124-025 Bolt - Hex Hd M8-1.25 x 25 2
20 R3256-74 3256-74 Washer - Flat 4
21 R99-8168 99-8168 Collar - Bracket Hoc 2
22 R33024-00 33024-00 Locknut - 8mm x 1.25 2
23 R99-1637-01 99-1637-01 Scraper Plate 1
24 R100-9818-01 100-9818-01 Plate - Spring Mounting 1
25 R74-3730 74-3730 Spacer 2
26 R33126-045 33126-045 Bolt - Carriage M12-1.75 x 45 2
27 R33026-00 33026-00 Locknut - 12mm x 1.75mm ESNA 2
28 R92-8934 92-8934 Spring - Extension 1
29 R100-6446-01 100-6446-01 Plate - Pivot 2
30 R100-6449 100-6449 Lift Roller 1
31 R100-6448 100-6448 Spacer - Lift Roller 1
32 R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 1
33 R3296-39 3296-39 Locknut - 3/8-16 Nylon 1
34 R3234-1 3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 2
35 R100-6447 100-6447 Spacer 2
36 R99-1615 99-1615 Roller - Rear 3 1
37 R93-2466 93-2466 Shaft - Rear Roller 1
38 R93-2559 93-2559 Bearing 2
39 R458013 93-2525 Ring - Retaining Reel 2
40 R93-2569 93-2569 Bolt - Hex Washer Nyloc M10 4
41 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 2
42 R95-1642-01 95-1642-01 Counterweight 1
