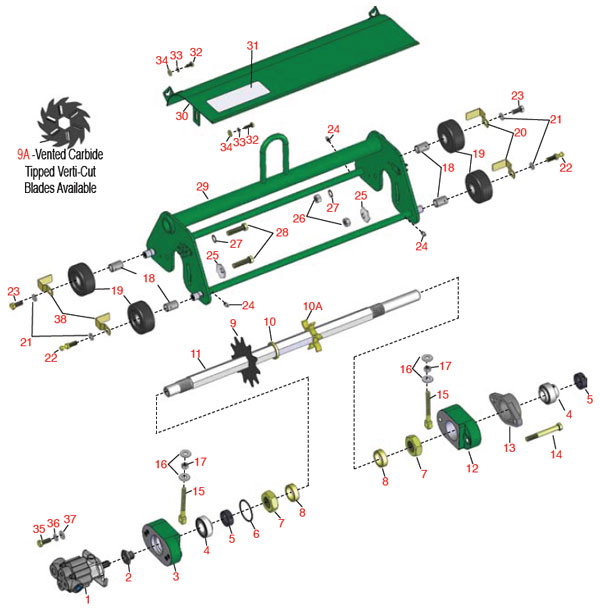

Item # R&R
Part No.
Description Qty
Req

Service Express Kits
1 R106-6392 Verti-Cut Blade Kit - 2mm Carbide Tipped

Verticut Blades
9 R17-1590 Verti-Cut Blade 36
9A R150209C Verti-Cut Blade - Carbide Tipped 2mm 36
9A R150109C Verti-Cut Blade - Carbide Tipped 1mm 36

Other Parts
1 R105-9770 Motor - Reel Hyd Quick Release 1
2 R10-5100 Nut - Splined 1-1/8 Long 1
2 R93-1394 Nut - Splined RH Thrd .812 Long 1
3 R17-1610G Housing - Bearing V-Cut - Green 1
4 R251-206 Bearing 1
5 R251-77 Collar - Bearing 2
6 R32120-77 Ring - Retaining 1
7 R3220-18 Nut - Jam V-Cut Shaft 2
8 R17-1580 Spacer - V-Cut Reel 1/2 2
10 R17-1600 Spacer - V-Cut Reel 1/4 72
10A R150230 Spacer - 1/2 Ventilated V-Cut 36
11 R17-1570 Shaft - Hex Verti-Cut 1
12 R17-1520G Weight - Counter V-Cut - Green 1
13 R251-247 Bearing - Flanged V-Cut Sft 1
14 R324-13 Bolt - Hex Hd 7/16 x 3-1/4 2
15 R17-1510 Eyebolt 2
16 R17-1710 Washer - Flat 3/8 Yellow USS 4
17 R3217-7 Nut - 3/8-16 Yel Hex 4
18 R17-1620 Bushing - Wheel 4
19 R17-1630 Wheel - Rubber Fits V-Cut Unit 4
20 R17-1640 Scraper - Wheel LH 2
21 R3254-6 Washer - Lock 3/8 4
22 R2411-7 Use R94-2958
22 R94-2958 Stud - Alloy Ball Joint 2
23 R3211-3 Bolt - Hex Hd 3/8-24 x 5/8 2
24 R302-5 Fitting - Grease 4
25 R3290-334 Washer - Lock Pyramidal 2
26 R443114 Nut - 7/16 Hex Yellow Zinc 2
27 R3255-16 Washer - Lock 7/16 Ext Tooth 2
28 R324-6 Bolt - Hex Hd 7/16-14 x 1-1/2 2
29 R17-1450G Frame - V-Cut - Green 1
30 R17-1530G Shield - Grass V-Cut - Green 1
30 R17-1530S Shield - Grass V-Cut - Stainless 1
31 R354083 Decal - Danger 1
32 R329-1 Bolt - Hex Hd 1/4-28 x 5/8 4
33 R3255-7 Washer - Lock 1/4 Ext Star Z 4
34 R3256-22 Washer - Flat 1/4 Yellow 4
35 R323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 2
36 R3255-9 Washer - Lock 3/8 Ext. Star 2
37 R453011 Washer - Flat 3/8 SAE Y/Zinc 2
38 R17-1650 Scraper - Wheel RH 2
