Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed

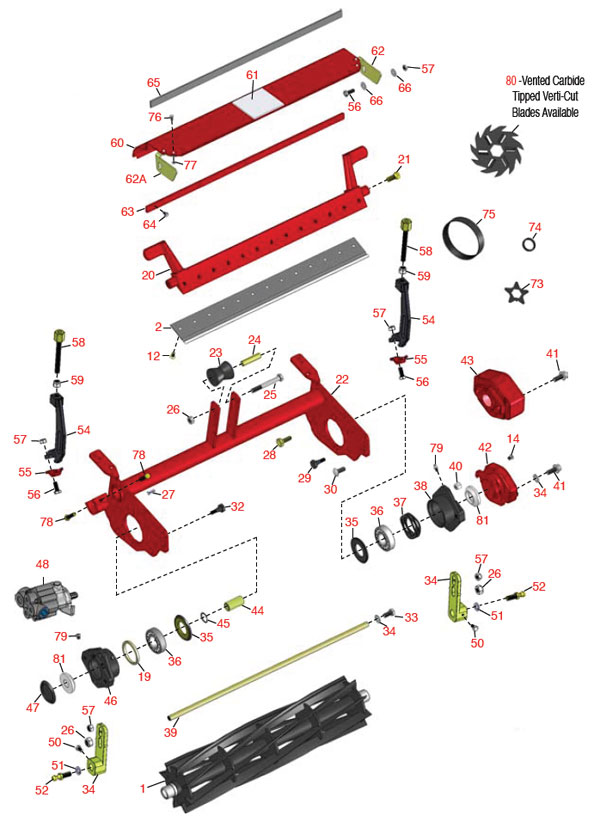

1 R94-4356 94-4356 Reel - 8 Blade 1
1 R94-4357 94-4357 Use R94-8037
1 R94-8037 94-8037 Reel - 11 Blade 1
1 R94-8039 94-8039 Use R94-4356

R&R Bedknives Available, Lifetime Guaranteed
2 R93-4262 93-4262 Bedknife - Micro Cut 1
2 R104-7720 104-7720 Bedknife - Micro Cut Extended 3
2 R65-8250 65-8250 Bedknife - Tournament 1/16 1
2 R99-4299 99-4299 Bedknife - Tournament Extended 3
2 R63-8560 63-8560 Bedknife - Super Thin 3/32 1
2 R63-8470 63-8470 Bedknife - Thin 1/8 1
2 R62-2500 62-2500 Bedknife - Thick 3/16 1
2 R150466 63-8600 Bedknife - Super Thick 5/16 1
2 R94-6393 94-6393 Use R150466
2 R93-4263 93-4263 Use R65-8250
2 R93-4264 93-4264 Use R63-8470
2 R94-6392 94-6392 Use R62-2500

Service Tools
R51-0880 Tool - Bedknife Screw

Other Parts Available
12 R150477 57-4910 Screw - Regular 1/2 Long 13
13 R52-3180 52-3180 Bearing - Front Roller 2
14 R302-5 302-5 Fitting - Grease 4
15 R52-3210 52-3210 Bearing - w/Milled Flat 2
16 R93-2559 93-2559 Bearing 2
17 R458013 93-2525 Ring - Retaining Reel 2
18 R93-2470 93-2470 Shaft - Fits Grooved Roller 1
19 R94-4544 94-4544 Spacer - Reel 1
20 R93-2576-01 93-2576-01 Bed Bar - 13 Hole 1
21 R315298 217-74 Bolt - Bed Bar 2
22 R105-9768 105-9768 Frame Assy 1
22 R95-1635-01 95-1635-01 Frame - Reel Use w/4 Bolt Adj 1
23 R93-2463 93-2463 Roller - Lift 1
24 R93-2464 93-2464 Spacer - Roller 1
25 R33115-080 33115-080 Bolt - Hex Hd M10 x 80 1
26 R33025-00 33025-00 Locknut - 10mm x 1.5 Jam 4
27 R32121-123 32121-123 Pin - Spring Roll 5/16 x 3/4 4
28 R95-0745 95-0745 Bolt - Tapered 4
29 R105-3834 105-3834 Bolt - Shoulder 1
29 R95-1618 95-1618 Use R105-3834
30 R33125-025 33125-025 Bolt - Carriage M10 x 25 w/Nut 4
31 R3256-46 3256-46 Washer - Flat 10mm 2
32 R95-1617 95-1617 Bolt - Eccentric Front Roller Bkt 1
33 R48-7770 48-7770 Bolt - Hex Hd M10 x 20 2
33 R33115-020 33115-020 Use R48-7770
34 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 6
35 R94-8908 94-8908 Seal - Reel 2
35 R105-3824 105-3824 Seal - Reel Double Lip 2
36 R105-3827 105-3827 Bearing - Reel 2
36 R93-2489 93-2489 Bearing - Reel 2
37 R94-4543 94-4543 Spring - Flat Reel 2
38 R94-4545 94-4545 Housing - Bearing 2
38 R105-3826 105-3826 Housing - Bearing LH 1
39 R93-2477 93-2477 Rod - Grass Shield 1
39 R98-2196 98-2196 Use R93-2477
40 R93-2454 93-2454 Nut - 3/8-16 Tapered 4
41 R93-2569 93-2569 Bolt - Hex Washer Nyloc M10 4
42 R95-1642-01 95-1642-01 Counterweight 1
43 R100-7113-01 100-7113-01 Counterweight 1
44 R94-4507 94-4507 Coupling - Reel 1
45 R32120-37 32120-37 Ring - Internal Retaining Reel 1
46 R94-4545 94-4545 Housing - Bearing 1
46 R105-3825 105-3825 Housing - Bearing RH 1
47 R150485 2410-30 Cap - Protective Bearing Housing 1
48 R100-6426 100-6426 Reel Motor - Quick Release 1
48 R93-1375 93-1375 Use R100-6426
49 R94-8170 94-8170 Bracket - Roller Front 2
50 R48-7610 48-7610 Bolt - Hex Hd Nyloc M6 x 12 2
50 R33113-012 48-7610 Use R48-7610
51 R3254-6 3254-6 Washer - Lock 3/8 2
52 R94-2958 94-2958 Stud - Alloy Ball Joint 2
53 R99-1460 99-1460 Receiver - Ball Joint 2
54 R95-1638 95-1638 Bracket - Hoc Adj 2
54 R99-6858 99-6858 Bracket - Rear Roller 2
55 R99-8168 99-8168 Collar - Bracket Hoc 2
56 R66-3160 33114-020 Bolt - Hex Hd 2
56 R33114-020 33114-020 Use R66-3160
57 R33024-00 33024-00 Locknut - 8mm x 1.25 4
58 R95-1633 95-1633 Adjustment - Hoc 2
59 R3296-5 3296-5 Locknut - 3/8-24 Jam Nylon 2
60 R99-4197 99-4197 Shield - Rear Assy 1
61 R99-1456 99-1456 Pad - Wear Grass Shield 1
62 R99-4151 99-4151 Deflector - RH Grass Shield 1
62A R99-4152 99-4152 Deflector - Grass Shield LH 1
63 R36-7260 36-7260 Bar - Cut Off Grass Shield 1
64 R32144-73 104-2065 Screw - Machine Hex Washer Head 5
65 R95-1636 95-1636 Seal - Strip Grass Shield 1
66 R3256-74 3256-74 Washer - Flat 4
67 R95-2912 95-2912 Shaft - Roller 1
68 R85-9970 85-9970 Bearing 2
69 R85-7190 85-7190 Washer - Shield 2
70 R32151-12 32151-12 Ring - Retaining 11/16 2
71 R93-2466 93-2466 Shaft - Rear Roller 1
72 R94-8169 94-8169 Decal - Front Roller Bkt Position 2
73 R95-5719 95-5719 Blade - Groomer 41
74 R70-1350 70-1350 Spacer - 1/4 Fits Groomer Shaft 84
75 R95-0728 95-0728 Belt - Fits Groomer 1
76 R60-6500 65-6500 Bolt - Hex Hd M4 x 10 4
77 R46-0430 46-0430 Locknut - 4mm 4
78 R33114-030 33114-030 Bolt - Hex Hd M8-1.25 x 30 4
79 R170714 302-34 Fitting - Pressure Relief 2
80 R150109C 106-5422 Verti-Cut Blade - Carbide Tipped 1mm 36
80 R150209C 106-6355 Verti-Cut Blade - Carbide Tipped 2mm 36
81 R104-2067 104-2067 Spacer - End - Motor 2
