Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req

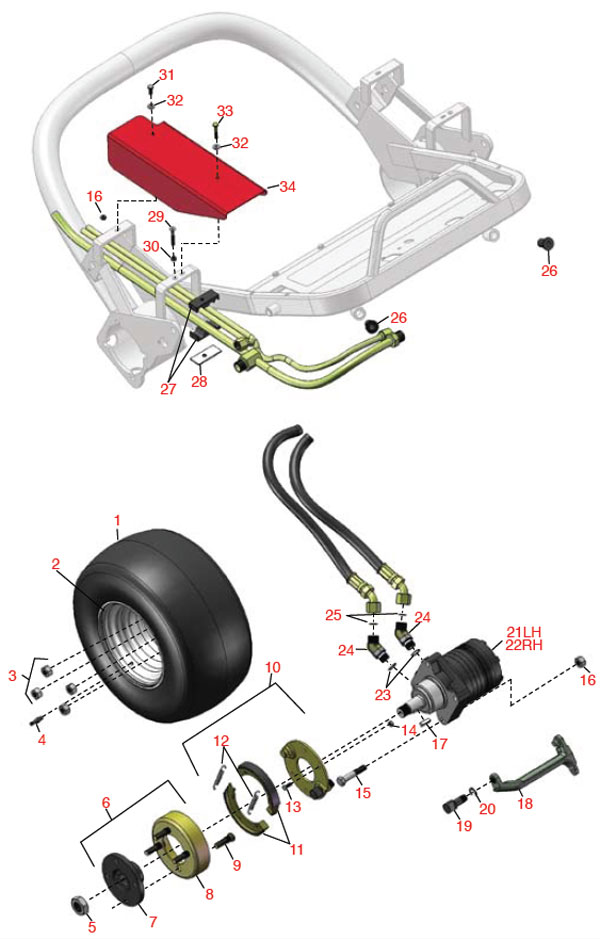

1 R150320 R&R Only Tire - w/Wheel Assy - White 2
2 R217-60 217-60 Wheel - With Valve Stem - White 2
3 R242-50 242-50 Nut - 1/2-20 Wheel 8
4 R232-27 232-27 Stem - Valve w/ Cap 2
5 R26-3790 26-3790 Nut - Hex - Wheel Motor 1-20 2
6 R10-6821 10-6821 Hub And Drum Assy 2
7 R10-6870-03 10-6870-03 Hub - Wheel 2
8 R10-6850 10-6850 Drum - Brake 2
9 R85-6540 85-6540 Stud - Drive 8
10 R71-1500 104-7705 Brake Assy 2
10 R104-7705 104-7705 Use R71-1500
11 R70-9840 70-9840 Shoe - Brake 4
12 R70-9880 70-9880 Spring - Brake Shoe 4
13 R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8 8
14 R301504 3296-42 Locknut - ESNA 1/4-20 8
15 R325-11 325-11 Bolt - Hex Hd 1/2-13 x 2-3/4 8
16 RF5003 3296-23 Locknut - ESNA 1/2-13 8
17 R3257-42 3257-42 Key - Woodruff 5/16 x 1 2
18 R93-2096 93-2096 Arm - Brake 2
18 R71-1510 71-1510 Use R93-2096
19 R70-9860 70-9860 Use R104-7708
19 R104-7708 104-7708 Cam - Brake w/Clip 1
19 R104-7707 104-7707 Cam - Brake 2
20 R150513 104-7706 E - Clip - Brake 2
21 R110-4015 110-4015 Hyd Wheel Motor - LH 1
21 R75-9990 75-9990 Motor - Hydraulic Wheel 1
21 R92-9199 92-9199 Motor - Hydraulic Wheel 1
22 R110-4016 110-4016 Hyd Wheel Motor - RH 1
23 R237-80 237-80 O-Ring 4
24 R340-14 340-14 Fitting - Hyd 4
25 R237-65 237-65 O-Ring 4
26 R83-1700 83-1700 Bushing - Flanged - Plastic 3
27 R57-6140 57-6140 Clamp - Half - Hyd Line 2
28 R83-1220 83-1220 Plate - Clamp - Hyd Lines 1
29 R32108-100 32108-100 Screw - 1/4-20 x 2 1/4 Soc Flat Hd 1
30 R32128-33 32128-33 Nut - 1/4-20 Flanged Serr 1
31 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 1
32 R3256-22 3256-22 Washer - Flat 1/4 Yellow 2
33 R3234-34 321-11 Bolt - Hex Washer 1/4 x 2 1
34 R83-0190-01 83-0190-01 Plate - Cover - RH 1
