Item # R&R
Part No.
OEM
Part No.
Description Qty
Req

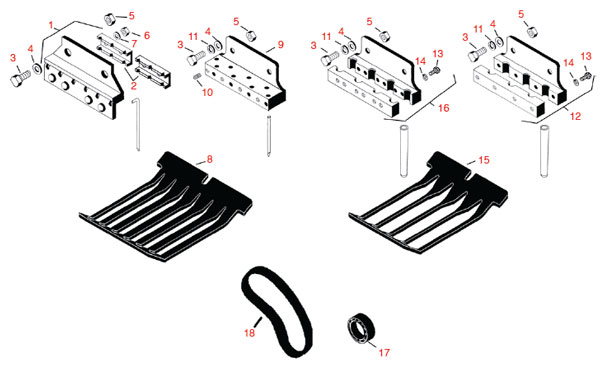

Needle Tine Holders
1 R09720 09720 Needle Tine Holder - 6 Tine 5mm Mt 1
1 R104-0976 104-0976 Use R09720
2 R104-0972 104-0972 Clamp - 6 Tine 5mm Mt 2 Req 2
3 R33118-045 33118-045 Bolt - Hex Hd M16-2.0 x 45 2
4 R33098-00 33098-00 Flatwasher - 16mm 2
5 R33028-00 33028-00 Locknut - 16mm x 2.0 ESNA 2
6 R104-9914 104-9914 Nut - Hex 12mm x 1.5 4
7 R3253-7 3253-7 Washer - Lock 1/2 /R446154 4
8 R100-5418 100-5418 Turf Guard - 6 Tine 5 Finger
8 R100-5419 100-5419 Turf Guard - 6 Tine 7 Finger

Mini Tine Holder Assembly
9 R100-3693 100-3693 Tine Holder - Mini 8 Tine 3/8 Mt 1
10 R100-3694 100-3694 Screw - Set - 10mm x 1.5 x 25mm 8
11 R3253-7 3253-7 Washer - Lock 1/2 /R446154 4
3 R33118-045 33118-045 Bolt - Hex Hd M16-2.0 x 45 2
4 R33098-00 33098-00 Flatwasher - 16mm 2
5 R33028-00 33028-00 Locknut - 16mm x 2.0 ESNA 2
8 R100-5420 100-5420 Turf Guard - 8 Tine 9 Finger
8 R100-5421 100-5421 Turf Guard - 8 Tine 5 Finger

3 Tine Holders with 3/4" Tine Mount
12 R100-3695 100-3695 Tine Holder - 3 Tine 3/4 Mt 1

3 Tine Holders with 7/8" Tine Mount
12 R100-7618 100-7618 Tine Holder Assy - 3 Tine 7/8 Mt 1
3 R33118-045 33118-045 Bolt - Hex Hd M16-2.0 x 45 2
4 R33098-00 33098-00 Flatwasher - 16mm 2
5 R33028-00 33028-00 Locknut - 16mm x 2.0 ESNA 2
11 R3253-7 3253-7 Washer - Lock 1/2 /R446154 4
13 R33115-050 33115-050 Bolt - Hex Hd M10-1.5 x 50
14 R48-9590 48-9590 Washer - Lock 10mm
15 R100-5414 100-5414 Turf Guard - 3 Tine 5 Finger
15 R100-5415 100-5415 Turf Guard - 3 Tine 3 Finger

4 Tine Holders with 3/4" Tine Mount
16 R100-3696 100-3696 Tine Holder Assy - 4 Tine 3/4 Mt 1

4 Tine Holders with 7/8" Tine Mount
16 R100-7617 100-7617 Tine Holder Assy - 4 Tine 7/8 Mt 1
3 R33118-045 33118-045 Bolt - Hex Hd M16-2.0 x 45 2
4 R33098-00 33098-00 Flatwasher - 16mm 2
5 R33028-00 33028-00 Locknut - 16mm x 2.0 ESNA 2
11 R3253-7 3253-7 Washer - Lock 1/2 /R446154 4
13 R33115-050 33115-050 Bolt - Hex Hd M10-1.5 x 50
14 R48-9590 48-9590 Washer - Lock 10mm
15 R100-5416 100-5416 Turf Guard - 4 Tine 5 Finger
15 R100-5417 100-5417 Turf Guard - 4 Tine 7 Finger

Other Parts to fit ProCore 440
17 R35008 100-7599 Bearing - Spindle 4
17 R100-5384 100-5384 Bearing - Bottom Link 2
17 R100-5396 100-5396 Bearing - Crankshaft 4
17 R100-7621 100-7621 Bearing 2
18 R100-7644 100-7644 Belt - Tine Arm - SET/2 2

Other Parts to fit ProCore 660 & 880
17 R100-5386 100-5386 Bearing 16
17 R100-7621 100-7621 Bearing 2
18 R100-5392 100-5392 Belt - Tine Arm - 5VX
R249-40 249-40 Keeper - Draw Latch
R59-9740 59-9740 Flex Draw Latch Assy
R24M7139 33093-00 Washer - Flat 6mm
R3290-355 3290-355 Pin - Bridge - Snap
R33023-00 33023-00 Locknut - ESNA 6mm x 1.0
R33024-00 33024-00 Locknut - 8mm x 1.25
R33025-00 33025-00 Locknut - 10mm x 1.5 Jam
R33026-00 33026-00 Locknut - 12mm x 1.75mm ESNA
R33094-00 33094-00 Washer - Flat - 8mm Hardened
R33115-025 33115-025 Bolt - Hex Hd M10-1.5 x 25
R33115-030 33115-030 Bolt - Hex Hd M10-1.5 x 30
R33115-080 33115-080 Bolt - Hex Hd M10 x 80
R33124-020 33124-020 Screw - Carriage M8-1.25 x 20 CL8
R460312 3290-343 Pin - Hair Cotter
R48-7770 33115-020 Bolt - Hex Hd M10 x 20
R66-3160 33114-020 Bolt - Hex Hd
