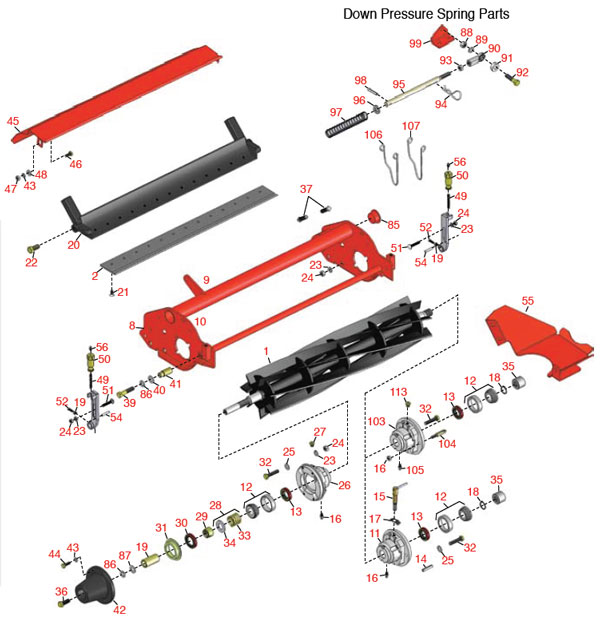

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed
1 R503319 5003053 Reel - 7 Blade LH 3
1 R503320 5003054 Reel - 7 Blade RH 2
1 R503321 5001097 Reel - 5 Blade LH 3
1 R503322 5001098 Reel - 5 Blade RH 2

R&R Bedknives Available, Lifetime Guaranteed
2 R5003150 5003150 Bedknife - Low Cut 1
2 R503257 503460 Bedknife - 7/16 1

Service Tools
R101272T R&R Only Bedknife Screw Driver Tool

Other Parts Available
8 R5003087 5003087 Frame - 5 Reel 1
9 R354083 361877 Decal - Danger 2
10 R1000997 1000997 Decal - Warning 1
11 R1002564 1002564 Housing - Bearing Motor End 1
12 R500534 500534 Bearing - With Cup 1
13 R336962 336962 Seal - Reel 2
14 R461397 461397 Pin - Roll 1/4 x 1-1/4 1
15 R1002607 1002607 Pin - Assy Quick Release 1
16 R302-5 471214 Fitting - Grease 1
17 R3005841 3005841 Spring - Vent Cover 1
18 R458013 458013 Ring - Retaining Reel 1
19 R367164 367164 Spacer - Reel 1
20 R220278 5000415 Backing Bar - Cast 1
20 R2000068 2000068 Bed Bar 1
21 R101272 3009138 Screw - Bedknife 13
21A R101272T R&R Only Bedknife Screw Driver Tool 1
22 R315298 315298 Bolt - Bed Bar 2
23 R365009 3005692 Knob - Adjusting Roller 2
24 R441674 441674 Screw - 5/16-18 x 1-3/4 Carriage 2
25 R453009 453009 Washer - Flat 5/16 SAE 8
26 R164144 1000480 Housing - Reel Bearing 1
27 R170714 471240 Fitting - Pressure Relief 1
28 R5002151 5002151 Hardware Kit - Spring/Washer 1
29 R364900 364900 Nut - Reel Tension 1
30 R337677 337677 Seal - Oil 1
31 R363814 163892 Spacer - Seal 1
32 R400192 400192 Bolt - Hex Hd 5/16-18 x 1-1/2 8
33 R363047 363047 Spring - Reel 1
34 R304745 304745 Washer - Reel 1
35 R3001720 3001720 Coupler - Iron Hyd Motor 1
36 R400294 400294 Screw - 3/8 24 x 3/4 Hex C/Zinc 1
37 R412506 412503 Screw - Bed Bar Adjusting 4
39 R400264 400264 Bolt - Hex Hd 3/8-16 x 1-1/4 2
40 R17-1710 452008 Washer - Flat 3/8 Yellow USS 2
41 R345510 345510 Spacer 2
42 R2000065 2000065 Weight - Counter 1
43 R3253-3 446130 Washer - Lock 1/4 4
44 R321-5 400110 Bolt - Hex Hd 1/4-20 x 7/8 2
45 R390950 390950 Shield - Grass 1
46 R400106 400106 Bolt - Hex Hd 1/4-20 x 5/8 2
47 R443102 443102 Nut - 1/4-20 Yellow Zinc 4
48 R453023 453023 Washer - Flat 1/4 2
49 R343616 343616 Stud 10
50 R365009 3005692 Knob - Adjusting Roller 10
51 R441674 441674 Screw - 5/16-18 x 1-3/4 Carriage 2
52 R352737 352737 Screw - Set 1/4x7/8 Sq.Head 2
53 R153980 153980 Bracket - RH Front Roller 2
53 R153979 153979 Bracket - LH Front Roller 2
54 R461256 461256 Pin - 1/4 x 1 2
55 R3008199 3008199 Skid - Motor RH Front Reel 1
55 R3008200 3008200 Skid - Motor LH Front Reel 1
85 R285-14 R&R Only Plug - Pipe Frame 2
86 R3254-6 446142 Washer - Lock 3/8 2
87 R453011 453011 Washer - Flat 3/8 SAE Y/Zinc 1
88 R443110 443110 Nut - 3/8-16 Hex. 1
89 R3254-6 446142 Washer - Lock 3/8 1
89 R446142 446142 Use R3254-6 1
90 R366974 366974 Bearing - Rod End 1
91 R352435 352435 Spacer 1
92 R400266 400266 Bolt - Hex Hd 3/8-16 x 1-1/2 1
92 R400268 400268 Bolt - Hex Hd 3/8-16 x 1-3/4 1
93 R3219-3 443812 Nut - 3/8-24 1
94 R460312 460312 Pin - Hair Cotter 1
95 R3008593 3008593 Shaft - Down Pressure 1
96 R453017 453017 Washer - Flat 1/2 1
97 R311870 311870 Spring - Compression 1
98 R461397 461397 Pin - Roll 1/4 x 1-1/4 1
99 R3008601 3008601 Bracket - Spring Holddown 1
103 R1004786 1004786 Housing - Bearing Quick Clip 1
104 R3010296 3010296 Pin - Motor Mounting 2
105 R32152-4 444708 Locknut - 1/4-20 Allmetal 2
106 R2810165 2810165 Clip - Spring Motor 1
106 R3010636 3010636 Use R2810165
107 R2810166 2810166 Clip - Spring Motor 1
107 R3010637 3010637 Use R2810166
108 RX7000043081 555405 Kubota Filter - Fuel 1
109 RX1627132090 557759 Kubota Filter - Oil 1
110 R557772 557772 Filter - Hydraulic Return 1
111 R556418 556418 Filter - Hydraulic 1
112 R5000919 5000919 Filter - Air Element 1
R1002224 1002224 Stud - Rear Roller 3/8-24
R163398 163892 Seal - Spacer Assy
R2810043 2810043 Shield - Grass
R391202 391202 Scraper - Fits Oem Roller
R2000060 2000060 Use R164144
R3008438 3008438 Use R153980
R3008439 3008439 Use R153979
R322-5 400188 Bolt - Hex Hd 5/16-18 x 1
R403782 403782 Screw - 1/4-20 x 3/4 Truss Head
R445795 445795 Nut - 5/16-18 Flanged
R452006 452006 Use R453009
R471242 471242 Use R170714
R1000770 1000770 Roller - Smooth Heavy Duty Tubular Steel
R100100 123268 Roller - Grooved Repairable Steel
R338735 338735 Scraper - Rear Roller
R400186 400186 Bolt - Hex Hd 5/16-18 x 7/8
R443106 443106 Nut - 5/16-18 Y/Zinc Plated
R446136 446136 Washer - Lock 5/16 Zinc
