Item # R&R
Part No. 		  Description Qty
Req

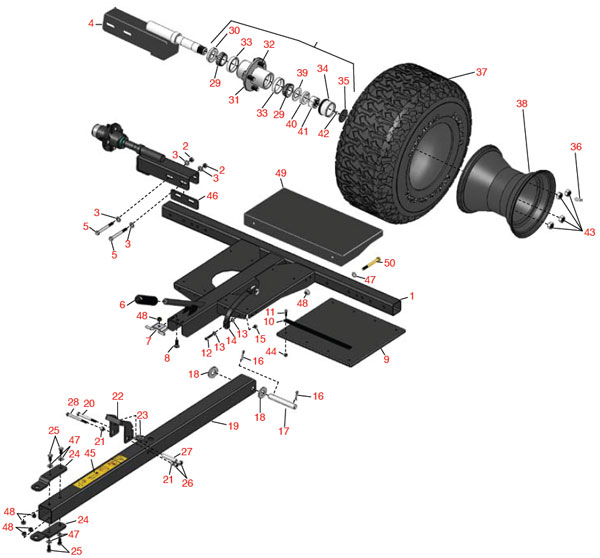

Complete Frame Assy
R04238B Frame Assy - Black

Overhaul Kits
50 R98-8690 Hub Assy - Trailer

Other Parts Available
1 R106-5366B Frame Assy - Black 1
2 R150312 Locknut - 7/16-14 All Metal 4
3 R453013 Washer - Flat 7/16 8
4 R105-9928B Spindle Assy - Black 2
5 R150311 Bolt - Hex Hd 7/16-14 x 3-1/2 GR8 4
6 R105-1904 Grip - Hand 1
7 R106-4671 Latch 1
8 R3231-2 Bolt - Carriage 3/8-16 x 1 1
9 R106-5360 Rubber Mat - Front Roller 1
10 R106-5384 Strip - Roller Mat 2
11 R297-1 Screw - Button Hd Socket 3/4 8
12 R316797 Bolt - 1/4-20 x 1-1/4 2
13 R3256-22 Washer - Flat 1/4 Yellow 4
14 R106-8459 Rubber Strap 2
15 R32128-32 Locknut - 1/4-20 Flanged 2
16 R460050 Pin - Cotter 3/16 x 1-1/4 2
17 R92-1233 Clevis Pin 1
18 R67-9410 Washer - Clevis Pin 2
19 R106-4675 Tongue - Trailer - Red 1
20 R322-20 Bolt - Hex Hd 5/16-18 x 3-1/4 GR5 1
21 R65-7910 Spacer - Latch 2
22 R106-8437 Release Strap - Latch 1
23 R105-9926 Spring - Extension 1
24 R105-9930 Hitch - Black 2
25 R323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 4
26 R3296-47 Locknut - 5/16-18 Jam Nyloc 2
27 R105-9912 Spacer - Latch 1
28 R322-23 Bolt - Hex Hd 5/16-18 x 3-3/4 GR5 1
29 R99-4501 Bearing Tapered 4
30 R99-4500 Seal - Spindle Hub 2
31 R99-4502 Hub - Spindle 2
32 R108-7662 Stud - Wheel 8
33 R254-72 Cup - Bearing 4
34 R99-4503 Grease Cap - Hub 2
35 R99-4504 Plug - Grease Cap 2
36 R232-24 Stem - Valve w/ Cap 2
38 R99-4507 Wheel 2
39 R99-4505 Washer - D 2
40 R99-4509 Retainer - Spindle Nut 2
41 R99-4508 Nut - Spindle 2
42 R302-5 Fitting - Grease 2
43 R242-50 Nut - 1/2-20 Wheel 8
44 R301504 Locknut - ESNA 1/4-20 8
45 R106-4669 Decal - Warning 1
46 R150319 Spacer - Spindle
47 R453011 Washer - Flat 3/8 SAE Y/Zinc 6
48 R32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 7
49 R150324 Plate - 150 Gt Trailer 1
50 R323-15 Bolt - Hex Hd 3/8-16 x 3-1/2 GR5 2
