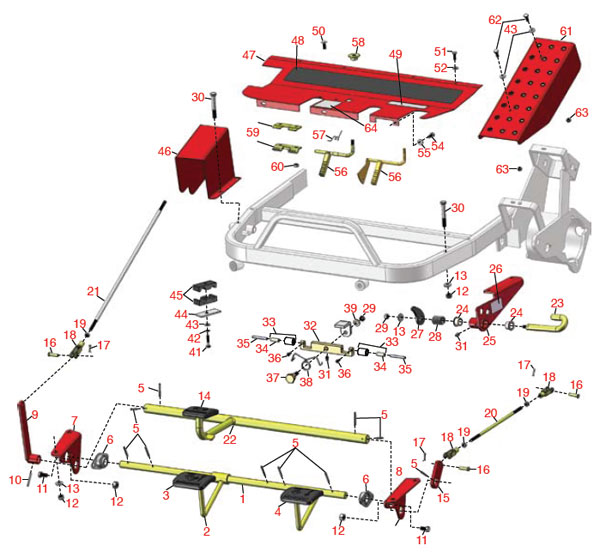

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R106-6395 106-6395 Shaft - Cutting Control Assy 1
1 R88-9660 88-9660 Use R106-6395
2 R106-6394 106-6394 Mow Pedal Assy 1
2 R83-0140 83-0140 Use R106-6394
3 R93-7630 93-7630 Rubber Foot Pad - Mow 1
4 R93-7631 93-7631 Rubber Foot Pad - Lift 1
5 R32121-35 32121-35 Pin - Spring Roll 5/32 x 1-1/2 8
6 R27-2320 27-2320 Bearing 2
7 R88-9630-01 88-9630-01 Bracket - Red 1
8 R88-9640-01 88-9640-01 Bracket - Red 1
9 R49-6200 46-6200 Cutting Lever - Green 1
10 R32121-6 32121-6 Pin - Roll 3/16 x 1-1/4 1
11 R3234-1 321-11 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 4
12 R3296-59 3296-59 Locknut - 3/8-16 Nylon Jam 8
13 R453011 80-7730 Washer - Flat 3/8 SAE Y/Zinc 5
14 R93-7629 93-7629 Rubber Foot Pad - Brake 1
15 R10-8100-01 10-8100-01 Strap - Shaft 2
16 R283-61 283-61 Pin - Clevis 5/16 x 1-1/8 5
17 R11M7012 3272-6 Pin - Cotter 1/8 x 5/8 5
18 R282-2 282-2 Yoke 5
19 R3220-2 3220-2 Nut - Jam - 5/16-24 5
20 R27-2270 27-2270 Rod - Adjustment 2
21 R49-5430 49-5430 Control Rod - Cutting Lever 1
22 R83-0160 83-0160 Shaft - Brake Assy 1
23 R93-9903 93-9903 Pin - Mow Lockout 1
24 R3-1506 3-1506 Bushing 2
25 R93-9901-01 93-9901-01 Lockout Bracket - Red 1
26 R93-9898 93-9898 Decal - Lock 1
27 R93-9904 93-9904 Mow Arm - Lockout 1
28 R76-0410 76-0410 Spring - Compression - Lockout Pin 1
29 R3296-39 3296-39 Locknut - 3/8-16 Nylon 2
30 R323-13 323-13 Bolt - Hex Hd 3/8-16 x 2-3/4 GR5 4
31 R302-5 302-5 Fitting - Grease 2
32 R150273 106-6396 Lift - Pivot Assy 1
33 R150274 R&R Only Roller Assy - Lift Pivot 2
34 R150275 R&R Only Bushing - Bronze 2
35 R150276 R&R Only Pin - Dowell - Removable 2
36 R150425 R&R Only Bolt - Hex Hd 8-32 x 5/8 2
37 R83-2590 85-2590 Bolt - Shoulder Eccentric 1
38 R83-0080 83-0080 Spring - Pivot - Lift 1
39 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 1
41 R3234-34 321-11 Bolt - Hex Washer 1/4 x 2 1
42 R3253-3 3253-3 Washer - Lock 1/4 1
43 R3256-22 3256-22 Washer - Flat 1/4 Yellow 3
44 R69-9760 69-9760 Cover Plate - Hyd Line Clamp 1
45 R56-7970 56-7970 Plastic Clamp 2
46 R49-6110-01 49-6110-01 Rod Guard - Red 1
47 R83-0640-01 83-0640-01 Footrest Plate - Red 1
48 R49-6120 49-6120 Pad - Anti-Skid Foot Rest 1
49 R93-8075 93-8075 Decal - Mow/Lift 1
50 R3229-11 3229-11 Bolt - Carriage 1/4-20 x 5/8 2
51 R3274-31 3274-31 Screw - Button Hd Soc Cs 1/4-20x5/8 4
52 R453023 3256-1 Washer - Flat 1/4 4
54 R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8 3
55 R3253-3 3253-3 Washer - Lock 1/4 7
56 R10-7850 10-7850 Parking Latch - Brake 1
57 R10-8140 10-8140 Spring - Torsion - Brake Latch 1
58 R32141-111 32141-111 Nut - Special HF Flanged 1
59 R10-7890 10-7890 Hinge - Lower 2
60 R301504 3296-16 Locknut - ESNA 1/4-20 2
61 R83-0200-01 83-0200-01 Plate - Cover - LH 1
62 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 2
63 R32128-33 32128-33 Nut - 1/4-20 Flanged Serr 2
64 R93-8062 93-8062 Decal - Parking Brake 1
