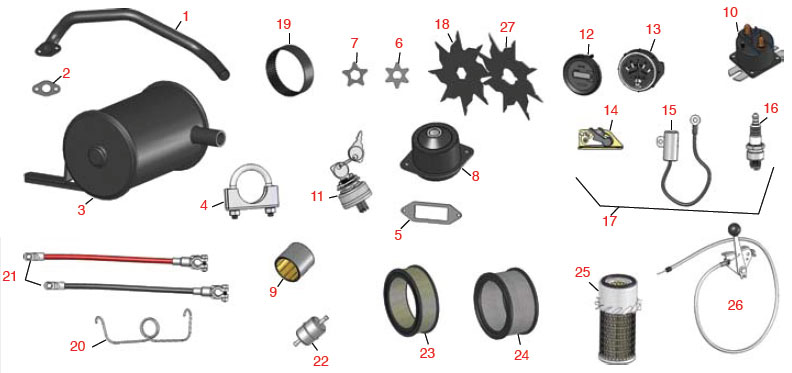

Item # R&R
Part No.
OEM
Part No.
Description Qty
Req
Filters
22 R18-1520 18-1520 Filter - Fuel 1
23 R235116 235116 Filter - Air Kohler 14HP 1
24 R45-083-02 45-083-02 Filter - Air 16 Hp 1
25 R27-7110 27-7110 Filter - Air Element 1

Gauges & Electronics
10 R6-1600 6-1600 Solenoid - Starter 1
11 R28-4210 28-4210 Solenoid 1
12 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount 1
13 R23-0660 23-0660 Switch - Key 5 Lead 1
14 R104-2541 104-2541 Switch - Key 6 Lead 5/8 Mt. 1
15 R343060 218-412 Ignition - Key SET/2 1
16 R12-9990 12-9990 Meter - Quartz Hour 1
17 R33-0990 33-0990 Meter - Amp 1

Other Traction Unit Parts Available
1 R10-7010 10-7010 Pipe - Exhaust 1
1 R62-2270 62-2270 Pipe - Exhaust Fits GM3M 1
2 R2210-118 2210-118 Gasket - Exhaust 1
2 R2210-275 2210-275 Gasket - Exhaust 1
3 R27-3020 27-3020 Use R36-7200
3 R36-7200 36-7200 Muffler 1
3 R62-2110 62-2110 Muffler - Fits 16 Hp Eng. 1
4 R2412-37 2412-37 Clamp - Muffler 1-1/4 1
4 R2412-76 2412-76 Clamp - Muffler 1-3/8 1
5 R5204111 Gasket - Cover Ignition Pts 1
6 R65-9400 65-9400 Verti-Cut Blade - 2-3/8 76
7 R70-1170 70-1170 Verti-Cut Blade - 2-3/8 w/7/8 Hex 41
7 R110-2393 R&R Only Verti-Cut Blade - 2-3/8 w/7/8 Hex Carbide Tipped
8 R27-2150 27-2150 Mount - Motor 4
9 R3-0348 3-0348 Bushing 10
18 R20-7380-1 R&R Only Spiker Blade - 10 Ga .134 10
18 R20-7380 20-7380 Spiker Blade - 12 Ga 10
18 R99-1612 99-1612 Spiker Blade - 10 Ga .134 w/Hex Hol 10
19 R65-9700 65-9700 Belt - Fits Turf Groomer 1
20 R10-9090 10-9090 Spring - Lift Mow Pedal 1
21 R10-7130 10-7130 Cable - Battery Positive 1
21 R28-2120 28-2120 Cable - Battery Negative 1
21 R27-3070 27-3070 Cable - Battery Neg to Eng 1
26 R49-6030 49-6030 Control - Choke 1
26 R62-2130 62-2130 Control - Choke Fits GM3000 1
26 R49-6020 49-6020 Control - Throttle 1
26 R68-9930 68-9930 Control - Throttle Fits GM3M 1
27 RT3T R&R Only Tuneup Kit - (Fits 14HP GM3) 1
28 RFG-2770 Point Set 1
29 R230722 Condensor 1
30 RN3212 Plug - Ngk B6L 1
