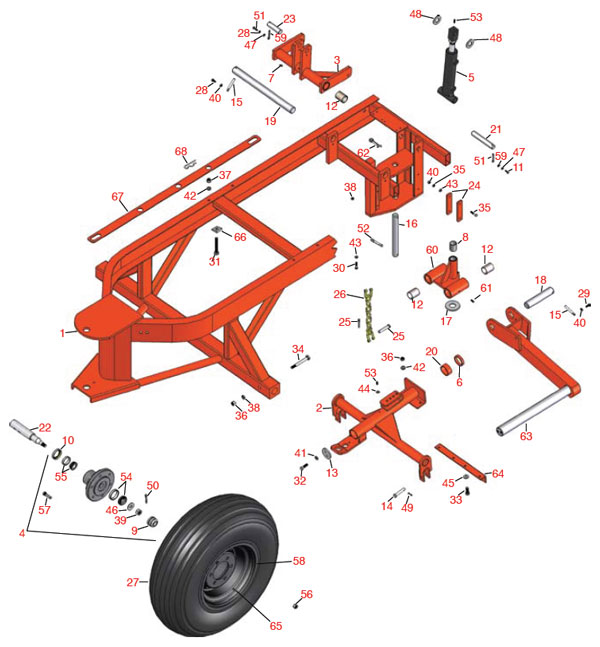

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
1 R116657 116657 Main Frame 1
2 R5000622 5000622 Carrier Frame Assy 2
3 R122413 122413 Bell Crank Assy 1
4 R940001 940001 Hub Assy 2
5 R163215 163215 Cylinder - Hydraulic 1
5A R500798 500798 Seal Kit - Fits R130210 Cylinder 1
6 R269005 269005 Ring - Spacer 1/2 - Green 2
7 R302-5 471214 Fitting - Grease 1
8 R307121 307121 Bushing - Bronze 2
9 R314626 314626 Hubcap - Heavy Duty 2
10 R314627 314627 Seal - Spindle 2
11 R321-4 400108 Bolt - Hex Hd 1/4-20 x 3/4 1
12 R550344 550344 Bushing - Formed 1.5 x 1.625 x 2 4
13 R342028 342028 End Cap 2
14 R343870 343870 Clevis Pin - 1/2 x 2 4
15 R346091 346091 Pin - Retainer 3
16 R363164 363164 Pin - Front Pivot 1
17 R363166 363166 Washer - 1-1/4 1
18 R363168 363168 Pin - Front Lift Cylinders 2
19 R363170 363170 Pin - Bell Crank 1
20 R363189 363189 Spacer - 1 In. Green 2
21 R363194 363194 Pin - Front Lift Cyl 1
22 R363227 363227 Spindle - Wheel 2
23 R363228 363228 Pin - Front Lift Cyl 1
24 R363232 363232 Plate - Shim - Black 2
25 R363252 363252 Shackle - Chain 4
26 R363256 363256 Chain - 3/8 x 6 Link 2
27 R363263 363263 Tire - 11L-15 Farm Utl 6 Ply 2
28 R400112 400112 Bolt - Hex Hd 1/4-20 x 1-1/4 1
29 R400184 400184 Screw - 5/16-18 x 3/4 Hex 3
30 R400192 400192 Bolt - Hex Hd 5/16-18 x 1-1/2 1
31 R319598 319598 Washer - Bevel 1/2 - Green 2
32 R400370 400370 Bolt - Hex Hd 7/16-20 x 1 GR5 4
33 R400408 400408 Bolt - Hex Hd 1/2-13 x 1-1/2 4
34 R400422 400422 Bolt - Hex Hd 1/2-13 x 4 GR5 2
35 R443106 443106 Nut - 5/16-18 Y/Zinc Plated 2
36 R443118 443118 Nut - 1/2-13 Zinc 6
37 R443818 443818 Nut - 1/2-13 Hex Jam Zinc 2
38 R444718 444718 Nut - 5/16-18 Center Lock YZ 1
39 R445672 445672 Nut - Hx Slotted 5/8-18 2
40 R446136 446136 Washer - Lock 5/16 Zinc 5
41 R446146 446146 Washer - Lock 7/16 Med. 4
42 R446154 446154 Washer - Lock 1/2 /// R3253-7 8
43 R310266 3256-23 Washer - Flat 5/16 USS 3
43 R3256-23 3256-23 Use R310266 3
43 R453009 3256-23 Washer - Flat 5/16 SAE 3
44 R453011 453011 Washer - Flat 3/8 SAE Y/Zinc 2
45 R453017 453017 Washer - Flat 1/2
46 R453020 453020 Washer - 5/8 SAE Flat Z 2
47 R453023 453023 Washer - Flat 1/4 2
48 R455004 455004 Washer - Flat 1 In SAE 2
49 R460028 460028 Pin - Cotter 1/8 x 1 4
50 R460048 460048 Cotter Pin 2
51 R460068 460068 Pin - Cotter 1/4 x 2 2
52 R460080 460080 Pin - Cotter 3/8 x 3 1
53 R471219 471219 Zerk - Grease 2
54 R500534 500534 Bearing - With Cup 2
55 R500535 500535 Bearing - With Cup 2
56 R590302 590302 Nut - Wheel Hub 12
57 R590303 590303 Stud - Wheel Hub 12
58 R940002 940002 Tire & Wheel Assy 2
59 R3253-3 446130 Washer - Lock 1/4 2
60 R122407 122407 Front Pivot Assy 1
61 R471227 471227 Fitting - Grease 1/4-28 45 Deg 3
62 R460088 460088 Pin - Cotter 3/8 x 2 1/2 1
63 R122414 122414 Arm Assy - Front - RH 1
63 R122415 122415 Arm Assy - Front - LH 1
64 R363197 363197 Cam - Front Arm - Black 2
65 R232-24 363233 Stem - Valve w/ Cap 2
66 R319598 319598 Washer - Bevel 1/2 - Green 1
67 R337964 337964 Transport Bar - Wing Units 1
68 R460328 460328 Hairpin Cotter 2
