Overhaul Kits Available
R30006 30006 Filter Kit - 400 Hr
Tech Note: 2002 & Up

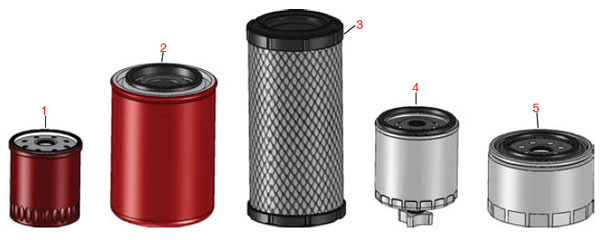

Filters for Briggs & Stratton Engine Models
1 R108-3842 108-3842 Filter - Diesel 1
2 R23-9740 54-0110 Filter - Hydraulic 1
3 R108-3811 108-3811 Element - Air Cleaner 1
4 R63-8300 63-8300 Filter - Fuel Element 1

Filters for Mitsubishi Engine Models
2 R23-9740 54-0110 Filter - Hydraulic 1
3 R108-3811 108-3811 Element - Air Cleaner 1
5 R108-3841 108-3841 Filter - Oil- Diesel Engine
4 R63-8300 63-8300 Filter - Fuel Element 1

Other Parts Available
10 R98-4590 98-4590 Hose Assy 1
20 R100-1270 100-1270 Sensor - Proximity 1
21 R27-2360 27-2360 Switch - Key 6 LEAD.9/16 Mount 1
22 R95-8999 95-8999 Switch - Headlight 1
23 R99-7435 99-7435 Relay - 70 Amp 1
24 R99-7430 99-7430 Relay 1
30 R232-27 232-27 Stem - Valve w/ Cap
R112-2923 112-2923 Seat - Grey
R100-4872 100-4872 Plate-Switch, Neut 1
R106-6774 106-6774 Joint-Ball 1
R240-5 240-5 Grommet - Rubber 1
R241-119 241-119 Cap-Dust 2
R2412-36 2412-36 Clamp - Hose 1/2
R254-106 254-106 Bearing - Tapered Cone 2
R254-107 254-107 Cup - Bearing 2
R254-72 254-72 Cup - Bearing 2
R254-90 254-90 Cup - Bearing Tapered Brg.
R254-91 254-91 Bearing - Cone
R254-94 254-94 Bearing - Tapered Cone 2
R256-156 256-156 Bushing-Flanged 4
R27-6600 27-6600 Spacer - Pump Coupling 4
R32151-104 32151-104 Ring - Retaining, Ex
R3234-38 3234-38 Bolt - Flanged Hex 1/2-13 x 1-1/4 24
R340-103 340-103 Fitting - Hyd 45 Deg 1
R340-132 340-132 Fitting - Hyd 90 Deg
R340-18 340-18 Fitting - Hyd 1
R340-2 340-2 Fitting - Hyd Straight 2
R340-77 340-77 Fitting - Hyd 1
R340-82 340-82 Fitting - 90 Deg 2
R340-88 340-88 Connector - Male 1
R353-783 353-783 Fitting - Straight 1
R353-987 353-987 Fitting - Hyd 90 1
R354-136 354-136 Fitting - Hyd 1
R3M41933 3290-378 Cable Ties - 6IN Bulk - Pack/100 6
R44-2230 44-2230 Coupling - Rubber Pump 2
R46-6560 46-6560 Bushing 1
R46-7510 46-7510 Hood-Inlet- Air 1
R54-9180 54-9180 Kit - U-Joint
R56-7973 56-7973 Clamp - Tube 2
R56-7976 56-7976 Clamp - Tube 2
R92-1233 92-1233 Clevis Pin 4
R93-0309 93-0309 Washer - Tab 2
R93-3102 93-3102 Cap - Fuel - Diesel 1
R93-6689 93-6689 Decal - No Riders 1
R94-1291 94-1291 Bushing - Flanged 2
R101526 323-12 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 8
R104-8300 104-8300 Locknut - 5/16-18 Flanged Y/Zinc
R106-7868 106-7868 Use 24x12.00-12 (6 Ply) Tire 1
R112-2984 112-2984 Use 20x10.00-10 (4 Ply) Tire 1
R115-4523 115-4523 Use R44-2230 2
R11M7012 3272-6 Pin - Cotter 1/8 x 5/8
R187-0 3256-25 Washer - Flat 7/16 SAE 2
R218-578 218-578 Fuse - 10 Amp 2
R237-21 237-21 O-Ring
R237-22 237-22 O-Ring
R237-30 237-30 O-Ring - Seal 2
R237-42 237-42 O-Ring
R237-78 237-78 Use R237-22
R237-79 237-79 O-Ring
R237-80 237-80 O-Ring 1
R237-81 237-81 O-Ring 1
R2412-108 2412-108 Clamp - Worm - 1/4 - Stainless
R2412-3 2412-3 Clamp - Hose - 1 1/16-2
R2412-34 2412-34 Use RG116 (Pkg 10)
R24M7139 33093-00 Washer - Flat 6mm 2
R283-62 283-62 Pin - Clevis 5/16 x 3/4
R285-17 285-17 Plug - 1/8 NPT 1
R301504 3296-16 Locknut - ESNA 1/4-20
R302-5 302-5 Fitting - Grease
R302-58 302-58 Use R302-5 2
R310266 3256-23 Washer - Flat 5/16 USS
R32105-13 32105-13 Screw-Hx Was Hd 10-32 x 3/4
R32121-24 32121-24 Pin - Sp Roll 1/4 x 1 2
R32128-21 32128-21 Locknut - Flanged 3/8-16 Whiz Top Lock 1
R32128-23 32128-23 Nut - Lock Hex Flanged 1/2-13
R32128-33 32128-33 Nut - 1/4-20 Flanged Serr
R32128-36 32128-36 Use R3296-39 4
R32128-43 32128-43 Nut - Flanged Whiz - 3/8-16
R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4
R32144-57 32144-57 Bolt - Hex Washer 5/16-18 x 1-1/2 1
R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8 1
R3217-7 3217-7 Nut - 3/8-16 Yel Hex 2
R3220-7 3220-7 Nut - 3/4-16 Jam Zinc 2
R322-12 322-12 Screw-Hh 1
R322-2 322-2 Bolt - Hex Hd 5/16-18 x 5/8
R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4
R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1
R3229-1 3229-1 Screw-Carr
R3229-34 3229-34 Bolt- Carriage 10 1
R3230-1 3230-1 Bolt - Carriage 5/16-18 x 3/4
R3230-2 3230-2 Bolt - Carriage 2
R3230-23 3230-23 Bolt - 5/16-18x3/4 - Carriage
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2
R3231-2 3231-27 Bolt - Carriage 3/8-16 x 1 6
R3231-21 3231-21 Screw - 3/8-16 x 3/4 Carriage 2
R3231-25 3231-25 Bolt - Carriage 3/8-16 x 1-1/4 4
R3234-1 3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 6
R3234-11 3234-11 Screw - Hex Washer Hd 6
R3234-12 3234-12 Bolt - Hex Serrated Washer Hd 2
R3234-29 3234-29 5/16-18x1 Serr Hex Wshr Flange Scr
R3234-4 3234-4 Bolt - Hex Serrated Washer Hd 1/4-20 x 3/4
R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 4
R323-9 323-9 Bolt - Hex Hd 3/8-16 x 1-3/4 1
R324-10 324-10 Bolt - Clamp 4
R324-13 324-13 Bolt - Hex Hd 7/16 x 3-1/4 2
R324-5 324-5 Bolt - Hex Hd
R325-13 325-13 Bolt - Hex Hd 1/2-13 x 3-1/4 2
R325-14 325-14 Bolt - Hex Hd 1/2-13 x 3-1/2 8
R325-19 325-19 Bolt - Hex Hd 1/2-13 x 5 1
R3253-21 3253-21 Washer - Lock 3/8
R3253-3 3253-3 Washer - Lock 1/4 4
R3253-4 3253-4 Washer - Lock 5/16 Zinc
R3253-6 3253-6 Washer - Lock 7/16 Zinc
R3255-9 3255-9 Washer - Lock 3/8 Ext. Star 1
R3256-22 3256-22 Washer - Flat 1/4 Yellow
R3256-27 3256-27 Washer - Flat 5/8 SAE
R3256-3 3256-3 Use R453009 4
R3256-4 3256-4 Use R453011 1
R3256-45 3256-45 Washer - Flat .733 x .381 x .058 YZ 1
R3256-6 3256-6 Use R453017
R3256-74 3256-74 Washer - Flat 8
R3272-10 3272-10 Pin - Cotter 1/8 x 3/4 1
R3272-11 3272-11 Pin - Cotter
R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4
R3272-37 3272-37 Pin - Cotter 1/4 x 2 1/2 2
R3290-271 3290-271 Rivet - Grass Shield 2
R3290-357 3290-357 Use R32128-43
R3290-379 3290-379 Use R3M41933 3
R3290-382 3290-382 Rivet - 5/32 x 1/2 Pop Rivet 2
R3296-12 3296-12 Nut - 10-32 Nylon Lock 1
R3296-15 3296-15 Locknut - 3/4-16 Nylon Jam 1
R3296-2 3296-2 Nut- #10 Lock
R3296-25 3296-13 Locknut - 1/2-13 Heavy ESNA 2
R3296-29 3296-29 Locknut - 5/16-18 ESNA
R3296-33 3296-33 Locknut - 5/8-18 ESNA Jam 1
R3296-39 3296-39 Locknut - 3/8-16 Nylon
R3296-42 3296-42 Use R301504
R3296-48 3296-48 Locknut - 7/16-14 ESNA
R3296-5 3296-5 Locknut - 3/8-24 Jam Nylon 1
R3296-59 3296-59 Locknut - 3/8-16 Nylon Jam 1
R33024-00 33024-00 Locknut - 8mm x 1.25 6
R33114-016 33114-016 Bolt - Hex Hd M8-1.25 x 15 3
R33114-030 33114-030 Bolt - Hex Hd M8-1.25 x 30
R33114-040 33114-040 Screw - Hh M8-1.25 x 40 CL8.8
R340-70 340-70 Nut - Lock 4
R340-78 340-78 Nut - Lock Bulkhead 6
R343060 63-8360 Ignition - Key SET/2 2
R400106 321-3 Bolt - Hex Hd 1/4-20 x 5/8 4
R400116 321-9 Bolt - Hex Hd 1/4-20 x 1-1/2 2
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4
R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4
R434027 3274-54 Bolt - Soc Hd Cap 1/4-20 x 1/2 2
R443818 3218-18 Nut - 1/2-13 Hex Jam Zinc 1
R443828 3220-6 Nut - 5/8 - 18 Hex 1
R444312 3219-14 Nut - 10-32 1
R444754 3296-4 Locknut - 5/16-24 Center 1
R445722 32128-20 Nut - Serrated Washer
R453009 3256-2 Washer - Flat 5/16 SAE 1
R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 2
R453013 3256-5 Washer - Flat 7/16 1
R453017 3256-26 Washer - Flat 1/2 3
R453022 3256-28 Washer - 3/4 SAE 1
R48-7610 33113-012 Bolt - Hex Hd Nyloc M6 x 12 2
R57-6380 33114-025 Bolt - Hex Hd M8-1.25 x 25
R66-3160 33114-020 Bolt - Hex Hd
R68-9400 68-9400 Nut - 8mm x 1.25 Flanged 1
R700414 302-11 Zerk - Grease 1/4-28 45 Deg 2
R80-6990 80-6990 Washer - Hardened
R80-7730 80-7730 Use R453011
R87-5100 87-5100 Washer - Snubbing
R87-7270 87-7270 Use R453017 6
R87-8640 87-8640 Washer - Flat
R92-1298 92-1298 Pin - Clik 8
R92-2379 92-2379 Clamp-Hose
R93-0307 93-0307 Nut - Lock Retainer 2
RF104 3253-8 Washer - Lock 5/8 1
RF5003 3296-23 Locknut - ESNA 1/2-13
RP1471-1 321-6 Bolt - Hex Hd 1/4-20 x 1 2
