Item # R&R

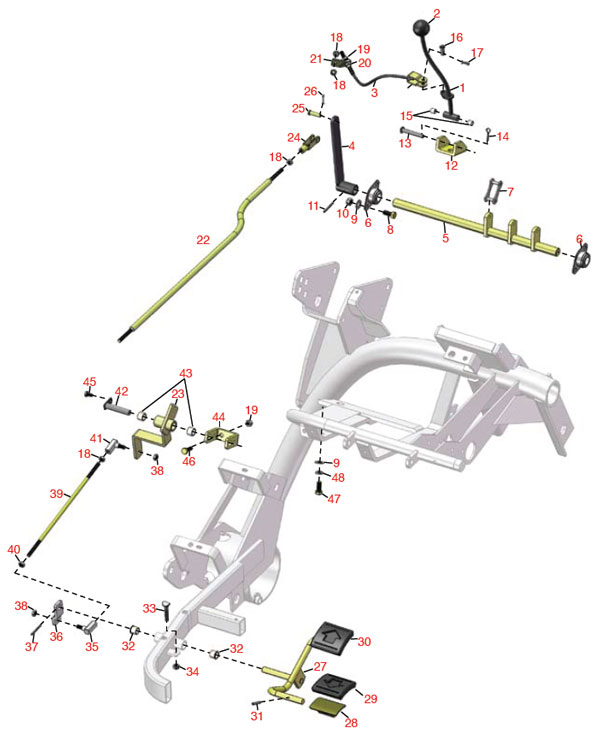

Part No. 		  Description Qty
Req
1 R93-9934 Traction Handle 1
2 R233-48 Knob 1
3 R93-9937 Traction Cable Assy 1
4 R47-5320G Lever Assy - Traction Control 1
5 R44-0870 Cam Shaft Assy - Traction Control 1
6 R27-2320 Bearing 2
7 R57-6220 Link - Connecting 5
8 R3234-1 Bolt - Flanged Serrated Hex Hd 3/8-16 x 3/4 4
9 R453011 Washer - Flat 3/8 SAE Y/Zinc 6
10 R3296-59 Locknut - 3/8-16 Nylon Jam 4
11 R32121-6 Pin - Roll 3/16 x 1-1/4 1
12 R49-6220 Bracket - Arm 1
13 R1023-3 Pin - Clevis 1/4 x 1-7/8 1
14 R1023-4 Pin - Cotter 3/32 x 3/4 1
15 R256-251 Bushing 2
16 R283-62 Pin - Clevis 5/16 x 3/4 1
17 R3272-10 Pin - Cotter 1/8 x 3/4 1
18 R3220-2 Nut - Jam - 5/16-24 4
19 R3296-29 Locknut - 5/16-18 ESNA 3
20 R443106 Nut - 5/16-18 Y/Zinc Plated 1
21 R93-9936 Bracket - Traction Cable 1
22 R49-5430 Control Rod - Cutting Lever 1
23 R49-6260 Pivot Assy 1
24 R282-2 Yoke 1
25 R283-61 Pin - Clevis 5/16 x 1-1/8 1
26 R11M7012 Pin - Cotter 1/8 x 5/8 1
27 R83-0540G Traction Pedal Assy 1
28 R49-6440-03 Pedal - Forward Assy 1
29 R74-9100 Rubber Foot Pad - Forward 1
30 R74-9110 Rubber Foot Pad - Reverse 1
31 R32121-45 Pin - Spring Roll 5/32 x 1 1
32 R256-155 Bushing - Flanged 2
33 R17-9420 Bolt - Contour Plow Bolt 1
34 R445722 Nut - Serrated Washer 1
35 R2411-42 Ball Joint - LH 1
36 R83-0630 Traction Arm - Pivot 1
37 R32121-51 Pin - Spring Roll 5/32 x 1-1/8 1
38 R444754 Locknut - 5/16-24 Center 2
39 R83-0580 Rod - Control - Traction 1
40 R3220-20 Nut - Jam - 5/16-24 LH 1
41 R2411-43 Ball Joint - RH 1
42 R49-6290 Pin 1
43 R256-2 Bushing - Idler Pulley 2
44 R49-6250 Bracket - Pivot 1
45 R12-3270 Bolt - Hex Washer 1/4-20 x 1/2 1
46 R322-5 Bolt - Hex Hd 5/16-18 x 1 2
47 R400296 Bolt - Hex Hd 3/8-24 x 7/8 2
48 R3254-6 Washer - Lock 3/8 2
