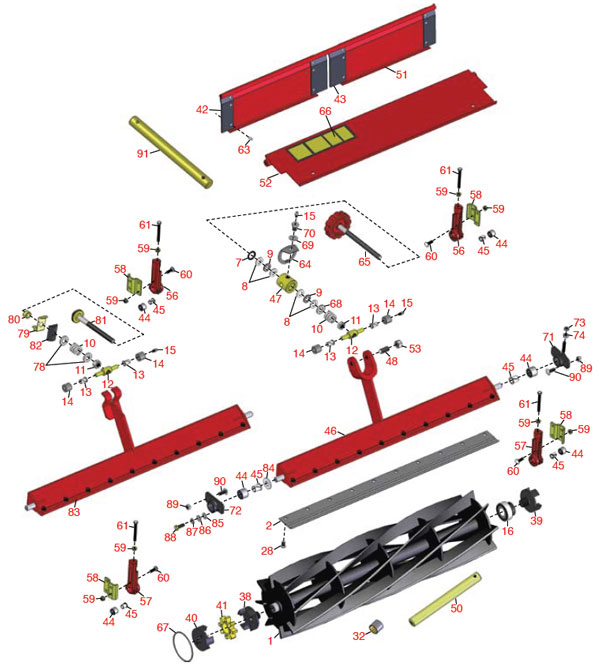

Item # R&R
Part No.
OEM
Part No.
Description Qty
Req

R&R Reels Available, Lifetime Guaranteed
1 R94-3631 94-3631 Reel - 5 Blade Fits 27 In Unit 3
1 R94-3630 94-3630 Reel - 8 Blade Fits 27 In Unit 3
1 R93-8833 93-8833 Use R94-3630
1 R93-8839 93-8839 Use R94-3631
1 R99-3482 99-3482 Use R94-3631 1
1 R99-3483 99-3483 Use R94-3630 1

R&R Bedknives Available, Lifetime Guaranteed
2 R62-5180 62-5180 Bedknife - 27 In Unit 1
2 R105-6785 62-5180 Use R62-5180 1

R&R Overhaul Kits & Service Tools
6 R150545 Overhaul Kit - Cutting Unit 1
R51-0880 R&R Only Tool - Bedknife Screw

Other Parts Available
7 R253-84 253-84 Seal - Micro Adj. 1
8 R257-5 257-5 Washer - Thrust 4
9 R257-6 257-6 Bearing - Thrust 2
10 R57-5270 57-5270 Spring - Adjusting Handle 1
11 R3296-62 3296-62 Locknut - 1/2-20 LH Jam 1
12 R57-5260 57-5260 Pivot - 1/2-20 - Bed Bar 1
12 R107-7409 107-7409 Pivot - 1/2-20 - Bed Bar - Hardened 1
13 R52-2890 52-2890 Bushing - Flanged 2
14 R62-5510 62-5510 Bushing 2
15 R302-18 302-18 Zerk - Grease Press Style 1
16 R100-4926 100-4926 Bearing - Reel Self Aligning 2
16 R71-1360 71-1360 Bearing - Reel 2
16 R88-7880 88-7880 Use R71-1360 2
18 R150475 3-6462 Screw - Stainless 10
18 R150476 57-4910 Screw - Regular 10
19 R94-2703 94-2703 Plug - Plastic Spindle Housing 1
26 R302-5 302-5 Fitting - Grease
27 R3290-55 3290-55 Rivet - 5/32 x 3/8 Pop Rivet 6
28 R323-2 323-2 Bolt - Hex Hd 3/8-16 x 1 2
29 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 2
30 R3254-6 3254-6 Washer - Lock 3/8
31 R32121-36 32121-36 Pin-Spring 4
32 R3-0348 3-0348 Bushing 12
33 R110-1718 110-1718 Screw-Hhf
38 R93-8825 93-8825 Coupling - RH Reel 1
39 R93-8826 93-8826 Coupling - LH Reel 1
40 R93-8823 93-8823 Coupling - Motor End 1
41 R93-8827 93-8827 Spider - Reel Coupling 1
42 R61-3280 61-3280 Cover - Rubber Side 2
43 R61-3290 61-3290 Cover - Rubber Center 2
44 R56-9510 56-9510 Bushing - Rubber For Bed Bar / Rl 6
45 R56-9520 56-9520 Bushing - Nyliner 6
46 R61-1210 61-1210 Backing Bar - Bed Knife
Tech Note: Fits 27" Unit
1
46 R61-1210-01 61-1210-01 Use R61-1210 2
47 R52-2980 52-2980 Housing - Pivot Spa 1
48 R57-5190 57-5190 Screw - Adjusting 2
50 R92-1815 92-1815 Shaft - Front Pivot 2
51 R61-1130 61-1130 Use R93-8849
51 R93-8849 93-8849 Shield - Rear Grass Fits 27 In Units 1
51 R94-4969 94-4969 Shield - Rear Grass 32 In Units 1
52 R94-3621 94-3621 Shield - Top Incl. Safety Decal 27 In 1
53 R443818 3218-18 Nut - 1/2-13 Hex Jam Zinc 2
55 R99-3404 99-3404 Housing-Bearing 2
56 R14-4479 14-4479 Bracket - Assy - Rear Roller 2
56 R61-0430 61-0430 Bracket - Long Rear Roller 2
56 R61-0430-01 61-0430-01 Use R61-0430 2
57 R14-4489 14-4489 Bracket - Assy - Front Roller 2
57 R61-0440 61-0440 Bracket - Short Front Roller 2
58 R61-0910 61-0910 Bracket 4
59 R3296-39 3296-39 Locknut - 3/8-16 Nylon 16
60 R3231-25 3231-25 Bolt - Carriage 3/8-16 x 1-1/4 2
61 R323-57 323-57 Use R61-0790 4
61 R61-0790 61-0790 Bolt - Roller Adjustment 4
62 R61-0420 61-0420 Support - Hoc 4
63 R3295-48 3295-48 Rivet - 3/16 x 3/8 Tub 8
63 R700382 700382 Rivet - Guard 8
64 R52-3000 52-3000 Arm - Spring 1
65 R61-1070 61-1070 Handle - Bed Bar Adjustment 1
65 R94-5067 94-5067 Handle - Adjusting 1
66 R93-8064 93-8064 Decal - Warning 1
67 R353-949 353-949 O-Ring 1
68 R29-8870 29-8870 Washer - Adj. Handle 1
69 R187-0 3256-25 Washer - Flat 7/16 SAE 1
70 R52-2990 52-2990 Bolt - Spring Retainer 1
71 R16-9769 16-9769 Housing - Bed Bar - Adj. Side 1
71 R93-6855 93-6855 Housing - Bed Bar Adj. 1
72 R14-4459 14-4459 Housing - w/Bushing For Bed Bar 1
72 R61-1010 61-1010 Housing - Bed Bar 1
73 R444754 3296-4 Locknut - 5/16-24 Center 1
74 R3219-2 3219-2 Nut - 5/16-24 Zinc 1
77 R323-6 323-6 Bolt - Hex Hd 3/8-16 x 1 GR5 YZ 8
84 R61-1950 61-1950 Washer - Nylon - Bed Bar 1
85 R62-7120 62-7120 Washer 1
86 R3256-56 3256-56 Washer 1
87 R3253-4 3253-4 Washer - Lock 5/16 Zinc 1
88 R322-3 322-3 Bolt - Hex Hd 5/16-18 x 3/4 1
89 R3296-29 3296-29 Locknut - 5/16-18 ESNA 4
90 R3230-1 3230-1 Bolt - Carriage 5/16-18 x 3/4 4
90 R3230-20 3230-20 Use R3230-1
91 R95-8979 95-8979 Shaft - Pivot Cutting Unit 3
92 R71-3690 71-3690 Spade-Bent 4
93 R61-3790 61-3790 Plate-Hoc, Front 2
94 R61-3800 61-3800 Plate - Hoc Rear 2
95 R93-6960 93-6960 Cover-Holder, Bearing 1
96 R93-6981 93-6981 Spacer 8
97 R94-3695-01 94-3695-01 Plate - Side Reel RH 1
98 R94-3697-01 94-3697-01 Plate - Side Reel LH 1
100 R94-5979 94-5979 Gasket 1
99 R3290-467 3290-467 Pin-Hair 4
R101526 323-11 Bolt - Hex Hd 3/8-16 x 2-1/2 GR5 4
R105-0156 105-0156 Use R61-0400 1
R105-6785 105-6785 Use R62-5180 1
R253-153 253-153 Use R253-146 2
R32128-36 32128-36 Use R3296-39 8
R32128-48 32128-48 Locknut - 7/16-20 Flanged 1
R32144-10 32144-10 Screw-Hwh 2
R323-10 323-10 Bolt - Hex Hd 3/8-16 x 2 4
R3253-5 3253-5 Use R3254-6 4
R3256-38 3256-38 Washer - Flat 3/4 x 3/8 x .060 2
R400258 323-4 Bolt - Hex Hd 3/8-16 x 3/4 4
R61-0420-01 61-0420-01 Use R61-0420 4
R93-8806 93-8806 Washer-Hardened 16
R94-8945 94-8945 Bushing - Link Bar 8
R253-146 105-0150 Seal - Outer Reel 2
R254-78 254-78 Bearing 2
R254-79 254-79 Cup - Bearing 2
R61-0400 61-0400 Shaft - Roller 1
R61-0410 61-0410 Roller - Smooth Tubular Steel 1
R71-3590 71-3590 Nut - Adjusting Roller 2
