Search Parts







Item # R&R
Part No.
OEM
Part No.
Description Qty
Req

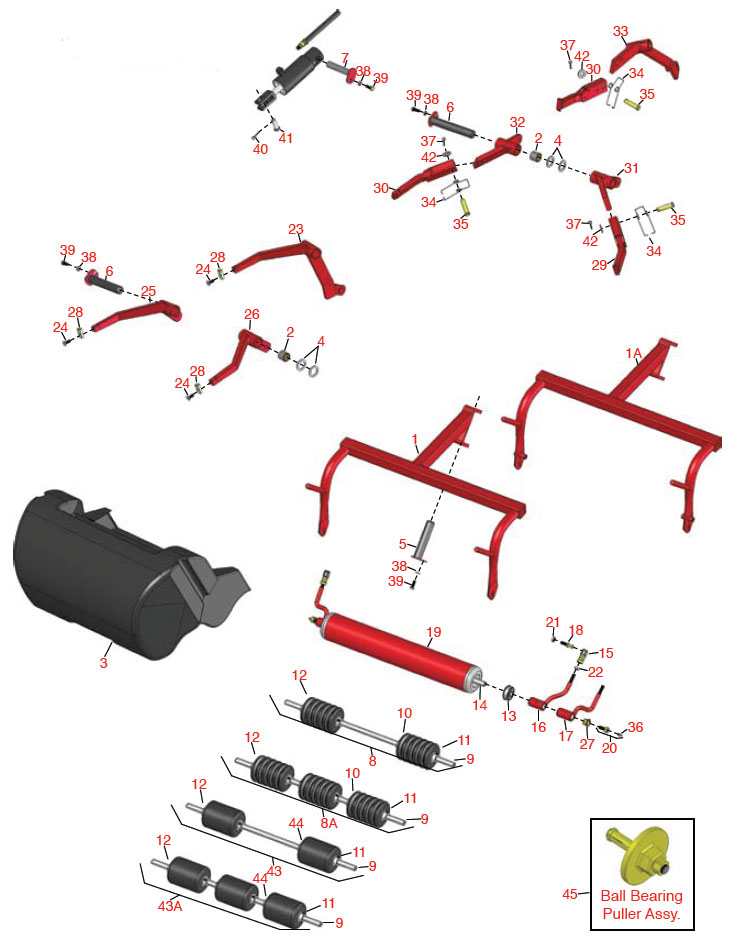

1 R83-0090 83-0090 Frame - Pull LH 1
1 R83-0210 83-0210 Frame - Pull RH / Center 2
1 R86-9810 86-9810 Frame - Pull LH 1
1 R86-9820 86-9820 Frame - Pull Center 2
1 R92-9177 92-9177 Frame - Pull RH
1 R47-5960 47-5960 Use R83-0210
1 R47-5970 47-5970 Use R83-0090
2 R3-0348 3-0348 Bushing
3 R36-7250 36-7250 Grass Basket 1
3 R37-8130 37-8130 Use R36-7250
4 R10-8110 10-8110 Washer - Pivot Pin 12
5 R10-6090 10-6090 Pin - Pivot 4 7/8 Long 3
6 R10-6110 10-6110 Pin - Hinge 6 1/4 Long 2
6 R27-2550 27-2550 Pin - Hinge 6-5/8 Long 1
7 R10-6060 10-6060 Pin - Pivot 3 7/8 Long 2
8 R3253-21 3253-21 Washer - Lock 3/8
9 R150326 R&R Only Shaft - Stainless Roller 1
10 R150327 R&R Only Roller End - 3.5 UHMW Grooved 2
11 R150328 R&R Only Collar - Retaining 5/8 4
12 R302295 R&R Only Washer - Fwy 4
13 R251-141 251-141 Bearing - Roller 2
14 R21-8470 21-8470 Shaft - Roller 1
15 R99-1460 99-1460 Receiver - Ball Joint 2
15 R8-7710 8-7710 Use R99-1460
16 R52-2740 52-2740 Arm - Pull LH w/Bushings 1
16 R52-2750 52-2750 Arm - Pull RH w/Bushings 1
17 R92-0585 95-0585 Arm - Pull RH 1
17 R92-0586 95-0586 Arm - Pull LH 1
18 R94-2958 94-2958 Stud - Alloy Ball Joint 2
18 R2411-7 2411-7 Use R94-2958
19 R52-2720 52-2720 Roller - w/ Bearings 1
20 R11-0160 11-0160 Screw - Roller Shaft 2
21 R3254-6 3254-6 Washer - Lock 3/8 2
22 R3220-3 3220-3 Nut - Jam Ball Joint 2
23 R51-2930 51-2930 Arm - Lift Center 1
24 R3289-18 3289-18 Screw - Hex Socket Head 3
25 R51-2910 51-2910 Arm - Lift RH 1
26 R51-2890 51-2890 Arm - Lift LH 1
27 R3-1506 3-1506 Bushing 12
27 R20-7650 20-7650 Use R51-2910 R51-3140 R3289-18
27 R20-7670 20-7670 Use R51-2890 R51-3140 R3289-18
27 R27-2520 27-2520 Use R51-2930 R51-3140 R3289-18
28 R51-3140 51-3140 Stop - Lift Arm 3
29 R62-2390 62-2390 Bar - Lift LH 1
30 R62-2420 62-2420 Bar - Lift RH / Rear 2
31 R62-2460 62-2460 Arm - Lift LH 1
32 R62-2440 62-2440 Arm - Lift RH 1
33 R62-2450 62-2450 Arm - Lift Rear 1
34 R57-7650 57-7650 Spring - Torsion Lift Arm 3
35 R63-8750 63-8750 Clevis Pin 3
36 R302-5 302-5 Fitting - Grease
37 R3272-12 3272-12 Pin - Cotter 1/8 x 1-1/4 3
38 R3253-4 3253-4 Washer - Lock 5/16 Zinc 6
39 R322-1 322-1 Bolt - Hex Hd 5/16-18 x 1/2 6
40 R283-8 283-8 Clevis Pin - 1/2 x 1 27/64 3
41 R3272-10 3272-10 Pin - Cotter 1/8 x 3/4 3
42 R453017 3256-26 Washer - Flat 1/2 3
42 R3256-26 3256-26 Use R453017 3
43 R150330 R&R Only Roller - 3-1/2 Solid Plas 1
43 R150332 R&R Only Roller - UHMW Solid 3-1/2 3 Sec 1
44 R150331 R&R Only Section - 3.5 UHMW 2
45 R256 R&R Only Bearing - Ball Puller Assy 1
46 R150325 R&R Only Roller - 3.5 UHMW Grooved 1
47 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc
51 R150329 R&R Only Roller - 3.5 UHMW Grooved 1
52 R150332 Roller - UHMW Solid 3-1/2 3 Sec
