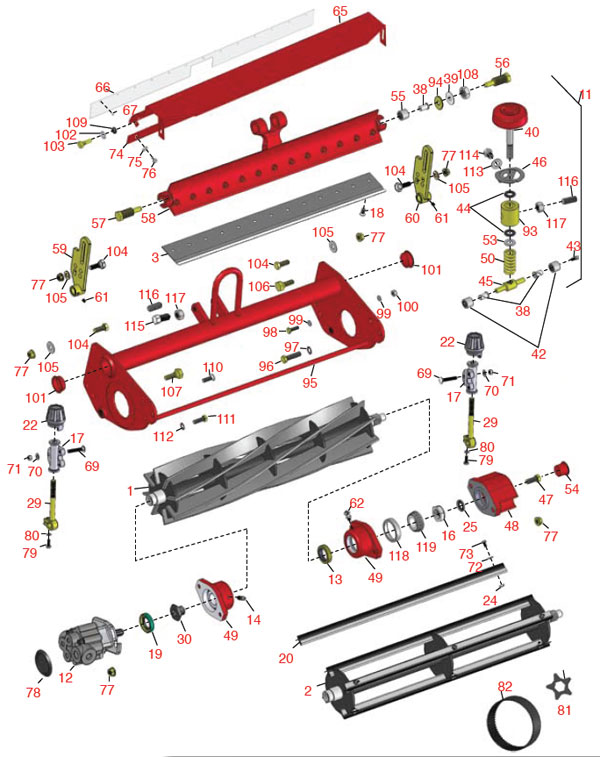

Search Parts

Item # R&R
Part No. 		OEM
Part No. 		Description Qty
Req
R&R Reels Available, Lifetime Guaranteed
1 R5-3189 5-3189 Reel - 8 Blade 1
1 R5-3189H R&R Only Reel - 8 Blade Heavy Duty 1
1 R5-3195 R&R Only Reel - 9 Blade 1
1 R5-3200 R&R Only Reel - 4 Blade 1
1 R5-3205 12-8779 Reel - 5 Blade 1
1 R5-3206 R&R Only Reel - 6 Blade 1
1 R5-3215 R&R Only Reel - 5 Blade Heavy Duty 1
1 R12-2789 12-2789 Reel - 11 Blade 1
1 R150760 R&R Only Reel - 14 Blade 1
1 R12-3599 12-3599 Use R5-3189
1 R12-8779 12-8779 Use R5-3205
2 R150480 R&R Only Brush Reel 1

R&R Bedknives Available, Lifetime Guaranteed
3 R150466 63-8600 Bedknife - Super Thick 5/16 1
3 R62-2500 94-6392 Bedknife - Thick 3/16 1
3 R63-8470 93-4264 Bedknife - Thin 1/8 1
3 R63-8560 93-4263 Bedknife - Super Thin 3/32 1
3 R65-8250 65-8250 Bedknife - Tournament 1/16 1
3 R93-4262 93-4262 Bedknife - Micro Cut

Overhaul Kits & Service Tools
5 R255-310 R&R Only Overhaul Kit - Cutting Unit
6 R13-3659 13-3659 Overhaul Kit - Cutting Unit
7 R107-1590 107-1590 Overhaul Kit - Cutting Unit
8 R255-311 R&R Only Kit - Micro Adjusting
R51-0880 R&R Only Tool - Bedknife Screw

Other Parts Available
12 R10-5090 10-5090 Use R105-9770
12 R70-9800 70-9800 Use R10-5090
12 R100-6426 100-6426 Reel Motor - Quick Release 1
12 R93-1375 93-1375 Use R100-6426
12 R105-9770 105-9770 Motor - Reel Hyd Quick Release 1
12 R94-3506 94-3506 Use R105-9770
13 R253-96 253-96 Seal - Oil Single Lip Reel 2
14 R302-5 302-5 Fitting - Grease 6
16 R3296-60 3296-60 Use R32127-46
16 R32127-46 32127-46 Locknut - Reel 1
17 R10-5060 10-5060 Bracket - Roller Adj 2
18 R150477 57-4910 Screw - Regular 1/2 Long 13
18 R150476 Screw - Regular 13
19 R353-585 353-585 Seal - High Pressure 1
20 R150481 R&R Only Brush Assy - Brush Reel 4
22 R65-8600 65-8600 Knob - Height Adjusting 2
25 R253-61 253-61 Seal - Oil Reel 1
29 R10-5010 10-5010 Screw - Roller Adjustment 2
29 R65-9500 65-9500 Screw - Roller Adjusting 2
30 R77-0340 77-0340 Nut - Splined Reel 1
30 R77-0560 77-0560 Nut - Splined Fits Groomer 1
38 R52-2890 52-2890 Bushing - Flanged 4
39 R52-2900 52-2900 Washer - Nylon 2
40 R77-0300 77-0300 Handle Assy - 1
41 R354083 R&R Only Decal - Danger 1
42 R62-5510 62-5510 Bushing 4
43 R302-18 302-18 Zerk - Grease Press Style 2
44 R77-0350 77-0350 Retainer - Bearing 2
45 R57-5260 57-5260 Pivot - 1/2-20 - Bed Bar 1
46 R66-7220 66-7220 Arm - Spring Handle Assy 1
47 R323-2 323-2 Bolt - Hex Hd 3/8-16 x 1 1
48 R10-5080 10-5080 Roller End - Cap Reel Brg Housing 1
49 R10-5120 10-5120 Housing - Bearing Reel 1
50 R66-7230 66-7230 Spring - Single Point Adj 1
53 R257-5 257-5 Washer - Thrust 2
54 R12-0460 12-0460 Caplug - End Cap/ Red 1
55 R63-9510 63-9510 Bushing - Rubber For Bed Bar 2
56 R52-2910 52-2910 Bolt - Eccentric Bed Bar 1
57 R52-2930 52-2930 Bolt - Bed Bar 1
58 R57-4940 57-4940 Bed Bar - 13 Hole 1
59 R52-3060 52-3060 Bracket - RH Rear Roller 1
59 R77-1060 77-1060 Use R52-3060
60 R52-3090 52-3090 Bracket - LH Rear Roller 1
60 R77-1080 77-1080 Use R52-3090
61 R3290-125 3290-125 Screw - Set 1/4-20 x 5/16 2
62 R302-40 302-40 Fitting - Grease 1
65 R57-5200 57-5200 Shield - Grass 1
66 R57-5210 57-5210 Deflector - Styrene 1
67 R3295-46 3295-46 Tube - Rivet Smi Grass Shield 13
69 R3-7253 3-7253 Use R441674
69 R441674 3230-5 Screw - 5/16-18 x 1-3/4 Carriage 2
70 R3256-23 3256-23 Use R453009 2
70 R453009 3256-23 Washer - Flat 5/16 SAE 2
71 R32153-3 3296-29 Locknut - 5/16-18 ESNA Zinc 2
72 R150425 R&R Only Bolt - Hex Hd 8-32 x 5/8 12
73 R150426 R&R Only Washer - 8 SAE 12
74 R36-7260 36-7260 Bar - Cut Off Grass Shield 1
75 R3256-14 3256-14 Washer - 10 Flat 5
76 R32144-73 32144-73 Screw - Machine Hex Washer Head 5
77 R3296-39 3296-39 Locknut - 3/8-16 Nylon 2
78 R150485 2410-30OSS Cap - Protective Bearing Housing 1
79 R321-4 321-4 Bolt - Hex Hd 1/4-20 x 3/4 4
80 R3253-3 3253-3 Washer - Lock 1/4 4
81 R70-1170 70-1170 Verti-Cut Blade - 2-3/8 w/7/8 Hex 41
81 R110-2393 R&R Only Verti-Cut Blade - 2-3/8 w/7/8 Hex Carbide Tipped
81 R70-1170C R&R Only Use R110-2393
82 R65-9700 65-9700 Belt - Fits Turf Groomer 1
93 R77-0330 77-0330 Housing - Pivot Spa 1
94 R52-2860 52-2860 Washer - Bed Bar Pivot 1
95 R70-1200 70-1200 Frame - Single Point Adj. 1
96 R3290-316 3290-316 Bolt - Hex Tap 3/8-16 x 1-1/2 4
97 R3255-9 3255-9 Washer - Lock 3/8 Ext. Star 4
98 R321-5 321-5 Bolt - Hex Hd 1/4-20 x 7/8 2
99 R3256-22 3256-22 Washer - Flat 1/4 Yellow 4
100 R301504 3296-42 Locknut - ESNA 1/4-20 2
101 R285-14 285-14 Plug - Pipe Frame 2
102 R3254-6 3254-6 Washer - Lock 3/8 2
103 R57-9910 57-9910 Bolt - Pivot 2
104 R400264 323-7 Bolt - Hex Hd 3/8-16 x 1-1/4 2
105 R453011 3256-24 Washer - Flat 3/8 SAE Y/Zinc 4
106 R52-3100 52-3100 Bolt - Eccentric Shoulder LH 1
107 R52-3110 52-3110 Bolt - Shoulder Hoc RH 1
108 R443828 3220-6 Nut - 5/8 - 18 Hex 2
109 R237-84 237-84 Grommet - Rubber 2
110 R32108-20 32108-20 Screw - Flat Hd Cntrsunk 2
111 R322-5 322-5 Bolt - Hex Hd 5/16-18 x 1 2
112 R3255-8 3255-8 Washer - Lock 5/16 Ext 2
113 R187-0 3256-25 Washer - Flat 7/16 SAE 1
114 R52-2990 324-25 Bolt - Spring Retainer 1
115 R66-7240 66-7240 Bolt - Single Point Adjust. 2
116 R57-5190 57-5190 Screw - Adjusting 2
117 R443818 3248-18 Nut - 1/2-13 Hex Jam Zinc 2
118 R254-72 254-72 Cup - Bearing 2
119 R254-94 254-94 Bearing - Tapered Cone 2
122 R354083 Decal - Danger
123 R94-2958 94-2958 Stud - Alloy Ball Joint
124 R3254-6 3254-6 Washer - Lock 3/8
