Serial Number - TOL5796

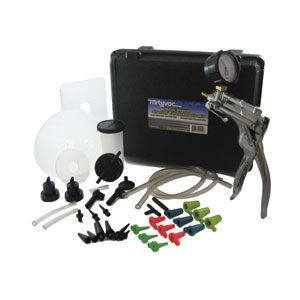

Mityvac MV8500 Vacuum and pressure gauge kit.
Ideal for servicing modern small engine carburettors where both vacuum & pressure testing is required.
Also suitable for pressure testing chainsaw crankcases when used with correct blocking off plates (not supplied with this kit, refer to relevent chainsaw manufacturer)
Other features & benefits
- Silverline elite hand vacuum / pressure pump with 2" (50mm) diameter compound gauge and rubber boot.
- 4.5 oz (135ml) fluid reservoir bottle with fluid transfer & storage lids.
- 4 tapered adapters for connecting to tubing from .09" (2.3mm) to .50" (13mm) I.D.
- 2 tapered manifold plugs.
- 2 Tapered bleed screw adapters.
- 12 Vacuum cap plugs.
- Vacuum line T- adapter.
- 5/32" (4mm) I.D x 1/4" (6.4mm) I.D Tubing adapter
- Rubber cupped adapter
- (2) 1/4" (6.4mm) I.D x 24" (610mm) long connection tubes.
- 1/4" (6.4mm) I.D x 1 1/2" (40mm) long connection tube..
- 1/4" (6.4mm) I.D x 3 5/8" (90mm) long fluid pick up tubes.
- 5/32" (4mm) I.D x 3" (75mm) long vacuum test tube.
- Master Cylinder Refill Kit.
- Custom Moulded Case.
- Users Manual.
Packed weight: 5.5 lbs (2.5kg)
Packaged Size: 12.9" x 9.8" x 4.5" (330mm x 250mm x 115mm)
|
